Description
Includes main parts:

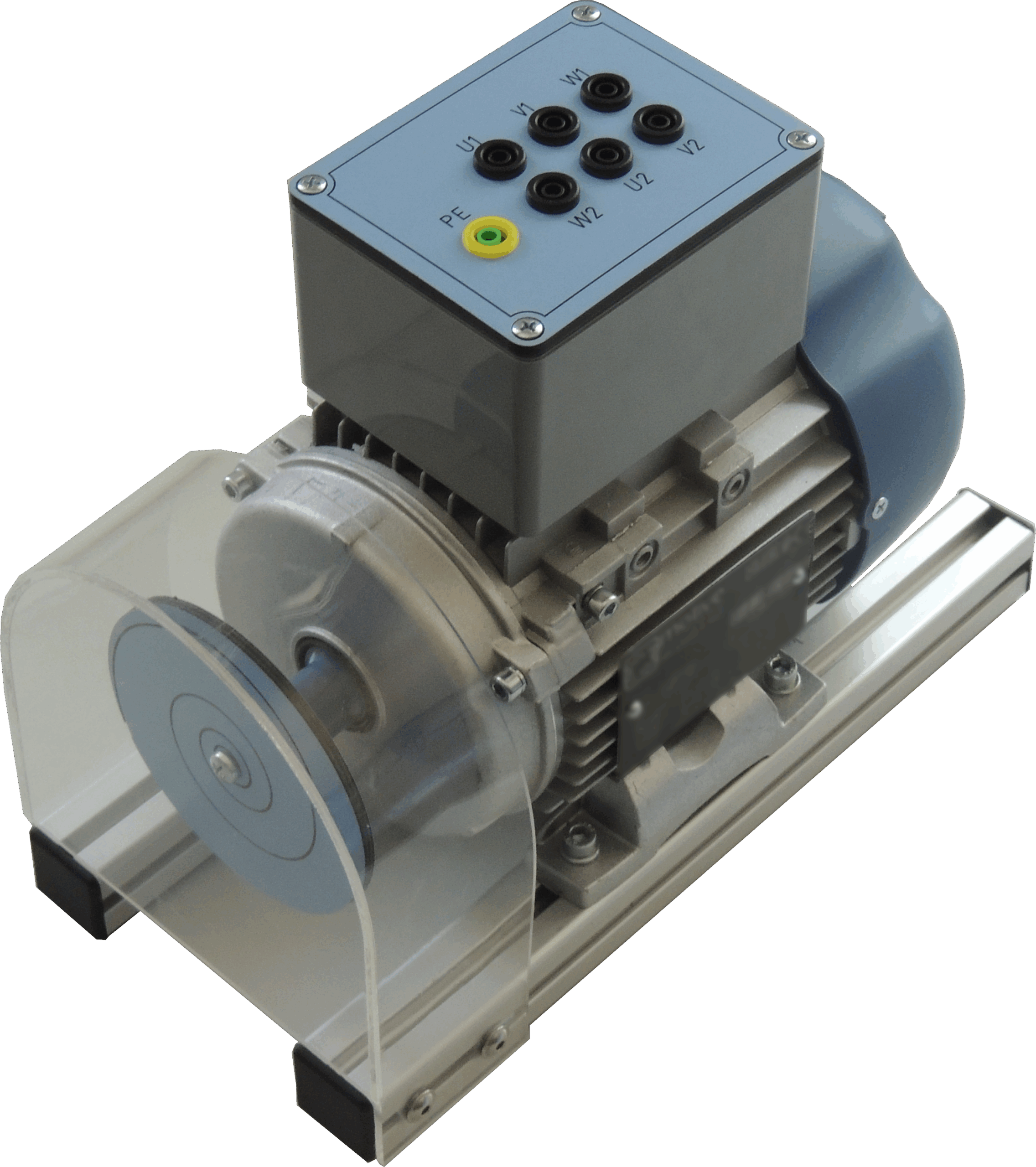

• AC MOTOR 0.37kW CODE: 1LE1001-0CB33-4AA4 SIMOTICS GP Motor type: 1AV2073B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 temperature class 155(F) according to 130(B) aluminum housing High Efficiency IE2, 4-pole * Size 71M * 0.37 kW (50 Hz) 3 AC 50 Hz 400 VD/690 VY IM B 3, without motor protection terminal box at top.
The panel also includes:
• Sockets for electrical connections
SIZE (W x H x D): 380 x 370 x 155 mm NET WEIGHT: 12.50 Kg
THE PACKAGE ALSO INCLUDES: User manual
RECOMMENDED: Safety connection cables 4 mm
