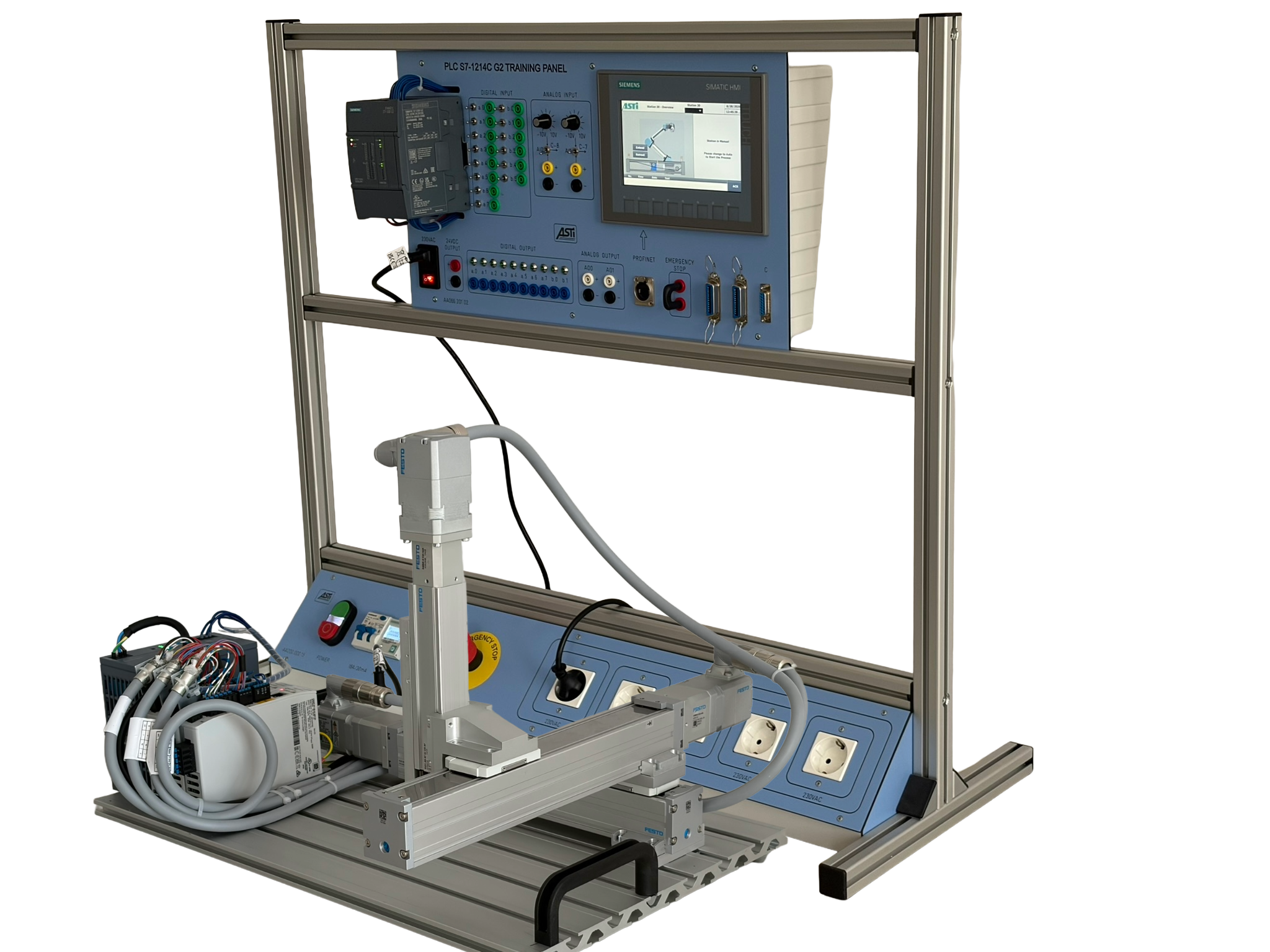

The AA900.270.30 ADVANCED 3 AXIS CARTESIAN PLATFORM is an advanced automation training system integrating the 3 Axis
Cartesian System, a Table Top Stand with Modular Supply Panel, and a PLC S7-1214C G2 with KTP700 HMI Training Panel. This
configuration provides a complete platform for training in PLC programming, HMI development, multi-axis motion control,
industrial communication, and system commissioning.
The platform offers advanced didactic capabilities, allowing trainees to gain hands-on experience in the mechanical assembly and
alignment of the cartesian axes, as well as the electrical installation, configuration, and programming of a complete 3-axis motion
control application. Trainees can learn axis homing, positioning, interpolation, sequence control, and synchronization, while also
developing practical skills in PLC–motion controller communication, HMI development, commissioning, diagnostics, and
troubleshooting, closely reflecting real-world industrial automation applications.
The structure includes (main pieces):
• AA009.001.01 – 3 AXIS CARTESIAN COORDINATE SYSTEM
• AA200.000.15 – TABLETOP STAND for Training Panels (Modbus RTU PAC 1600)
• AA066.201.02 – PLC S7-1214C G2 & HMI TRAINING PANEL (KTP700)
