Description:

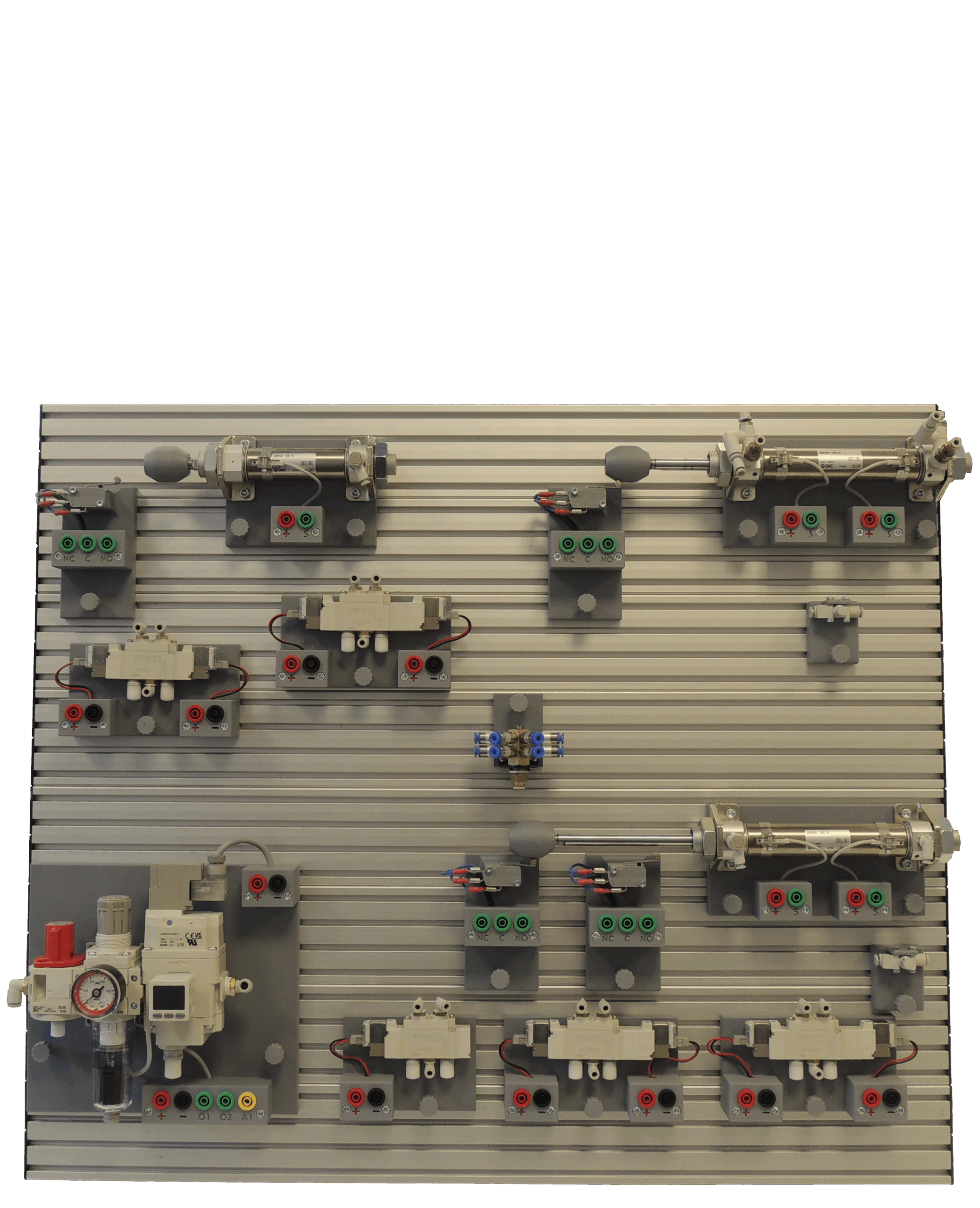

The AA159.000.08 E-Pneumatic SMC Training System is a versatile educational platform tailored for industrial automation training. Its modular design allows for flexible configuration, enabling hands-on experience in designing, controlling, and troubleshooting pneumatic systems. This adaptability enhances practical skill development, preparing students for real-world automation technology applications.
The structure includes (main pieces):
- 1 x AA159.012.08: Single acting cylinder with sensor
- 1 x AA159.011.08: Double acting cylinder pilot operated
- 1 x AA159.010.08: Double acting cylinder with 2 sensors
- 1 x AA159.020.08: Solenoid Valve 5/2 monostable
- 1 x AA159.021.08: Solenoid Valve 5/2 bistable
- 1 x AA159.022.08: Solenoid Valve 5/3 closed center
- 1 x AA159.023.08: Solenoid Valve 5/3 open center
- 1 x AA159.024.08: Solenoid Valve 5/3 with pressurized center
- 1 x AA159.030.08: Air preparation group
- 2 x AA159.040.08: Throttle check valve
- 1 x AA159.050.08: Air distributor
- 4 x AA159.060.08: Switch
Recommended equipment:
- AA033.000.10 – OPTA CODESYS TRAINING PANEL
- AA025.000.03 – LOGO! 0BA8 TRAINING PANEL COMPACT
- AA402.000.01/02 – SAFETY CONNECTION CABLES 4MM 0.5M/ 1M
