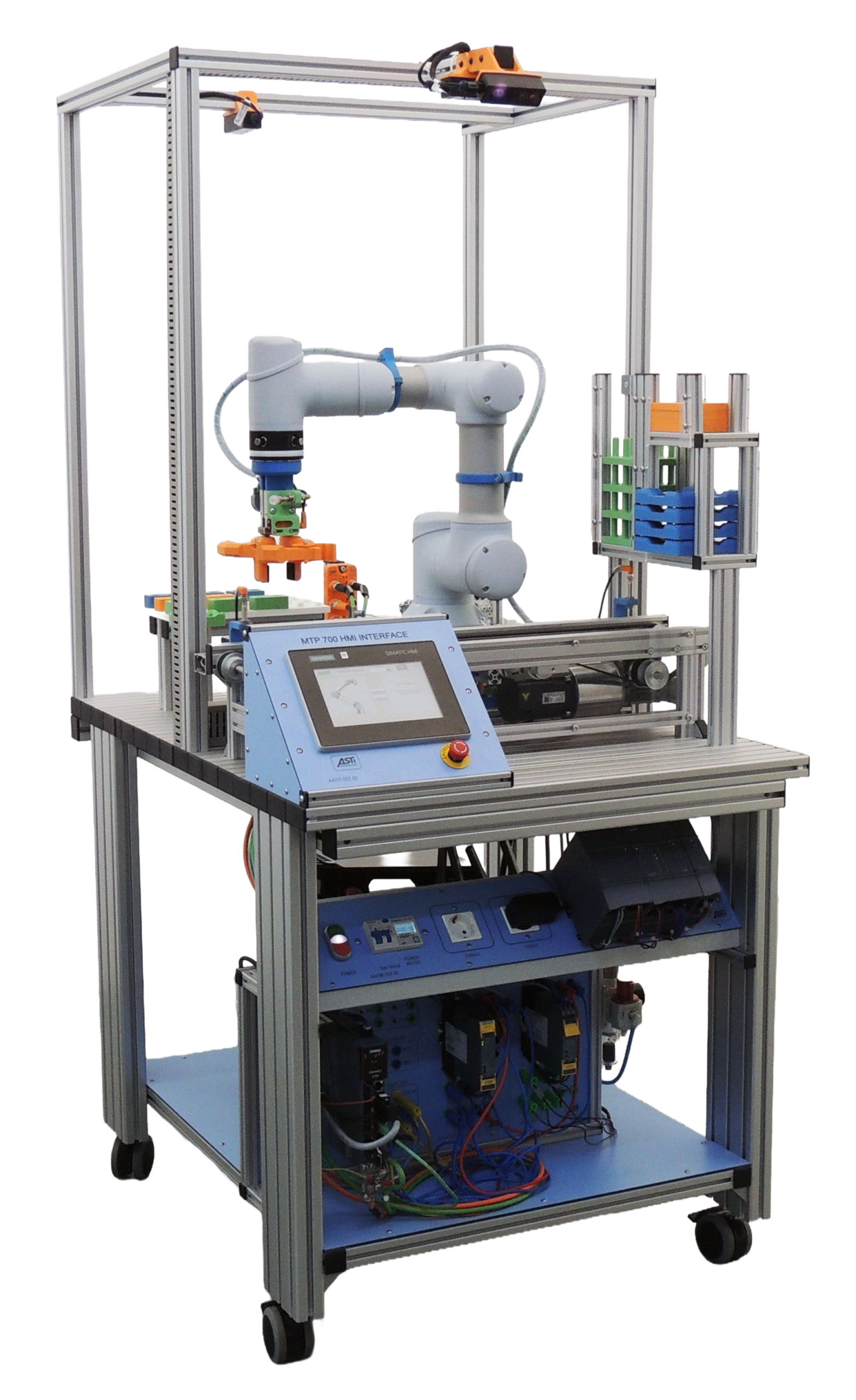

Description
Includes main parts:
• AA200.001.02 WorkstationMR (800 x 800 x750) with Modular Supply Panel
• DUCO COBOT GCR3-618 cobot 6 axis; ±0,02mm; 3kg; 618mm; weight=13 kg, teach panel
• SIEMENS CPU 1214C G2 /CB241 G2 //switch XB005//PS 24V/ 5A
• SENTRON PAC1600, measuring device, 7KT PAC1600, LCD, L-N:230 V, 63 A, strd rail instr., sing.-ph., Modbus RTU/ASCII, apparent/ active/reactive energy, self-powered, screw terminals
• IO-Link Master DL PN 4P IP67 (COUPLER PN)
• AA026.002.04 KTP700 HMI INTERFACE CASE (RED MUSHROOM)
• AA096.001.04 Double Gripper E-PNEUM& VACUUM (SMC)
• Compact Storage Unit and Compact Unloading Unit (inside robot cell)
• General ESD button
• AA094.101.19 CONVEYOR TOOTHED BELT WITH SYNCHRONOUS SERVO (S210_1FK2)
• AA046.000.01 SINAMICS S210 TRAINING PANEL (1AC 230V, 0.4 kW)
• AA095.000.05 Compact Pneumatic INDEX UNIT (on conveyor belt)
• AA059.000.06 Air Supply Filter Regulator with pressure swich
• AA059.000.09 Air Compressor Supersilent SAGER
• AA095.100.01 3D Printed Assembly Line Set (6 sets)
SIZE (W x H x D): 760 x 1800 x 1000 mm NET WEIGHT: 150 kg
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE Programming software TIA Portal – SIEMENS
