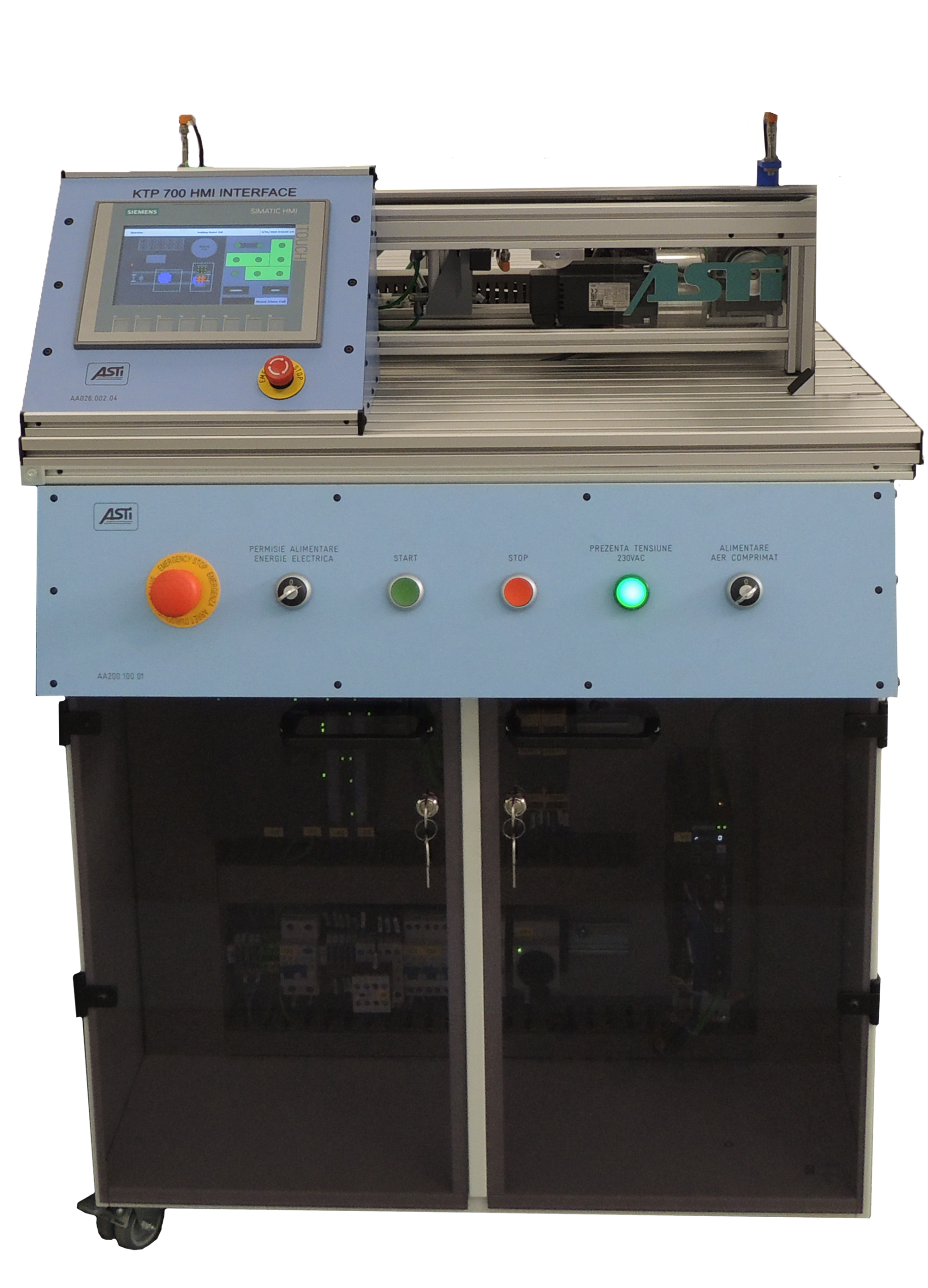

Description
Includes main parts:
• TROLLEY dimensions (700 x 700 x 750) with 4 swivel casters, 2 of which have a parking brake, two-door trolley and arresting strip 500 mm (stop including doors 505 mm), aluminium Profile 5 dimensions (700 x 730)
The panel also includes:
• CMMT-AS CONTROLLER MOTOR CMMP (for servomotor) CMMT-AS
• NEBM -M CABLU MOTOR NEBM-M
• PLC 60E FESTO CPX-E (16 DI, 8 DO, 4XIO-LINK)
• PS CACN FESTO POWER SUPPLY 24 V/10 A
• IO-Link Master DL PN 4P; RFID read / write head 13.56 MHz with IO-Link interface
• AA032.001.04 HMI INTERFACE CASE FESTO, 20 x 20 aluminium frame with HPL panels, ESD button with 2 NC contacts
• AA094.101.30 CONVEYOR TOOTHED BELT WITH SYNCHRONOUS SERVO (FESTO EMMT-AS-60)
• AA059.000.06 AIR SUPPLY FILTER REGULATOR
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, Festo Automation Suite with the CODESYS extension
