Description
Includes main parts:

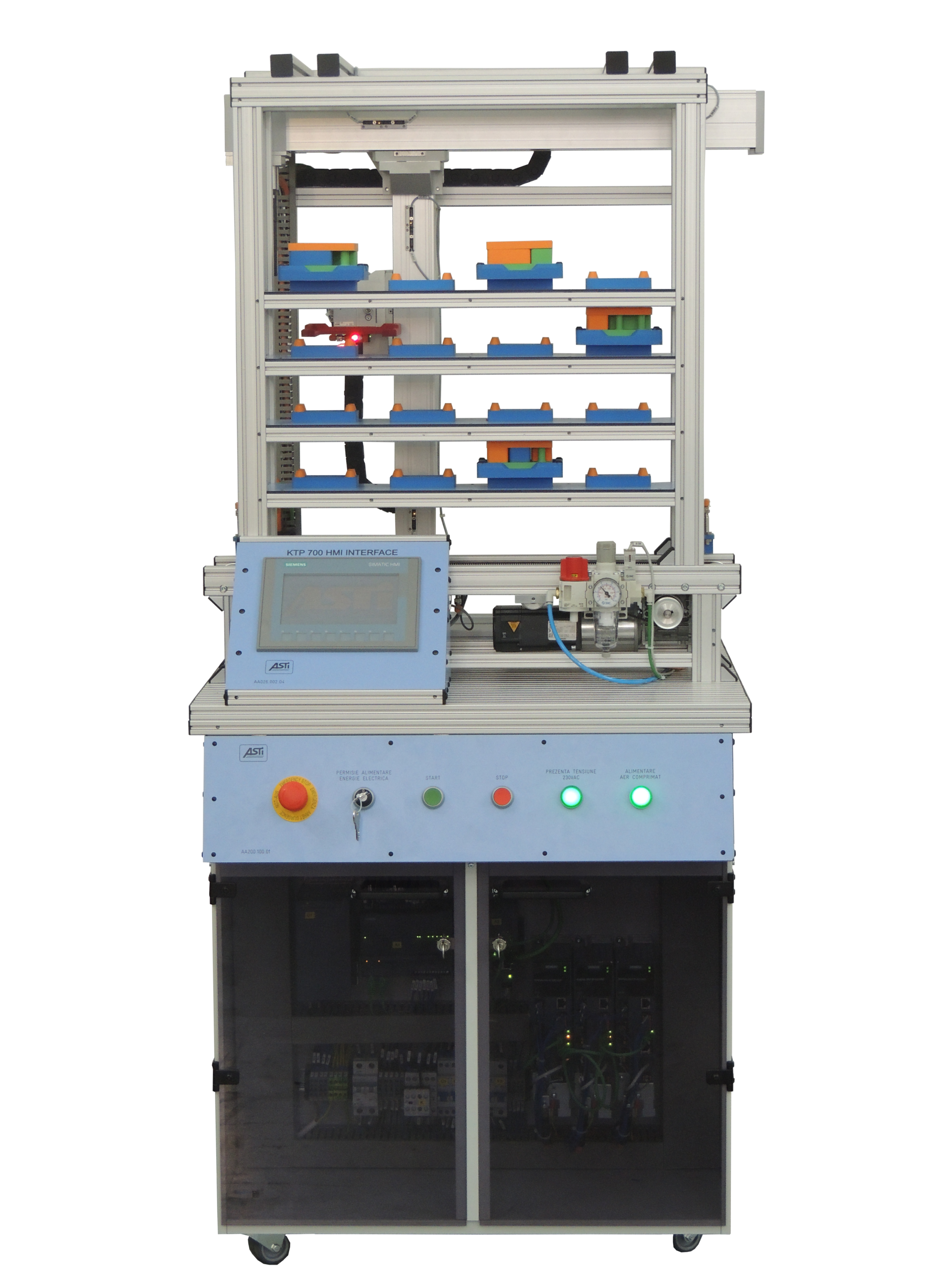

• 1 x Steel structure (two-door trolley: 700 x 700 x 750 mm) with HPL panels and 4 swivel casters
• 1 x Conveyor toothed belt with servomotor Sinamics
• 3 x Servodrive type SINAMICS
• 2 x FESTO toothed belt axis with 500 mm working stroke
• 1 x SMC pneumatic axis with 150 mm working stroke
• 1 x Compact pneumatic index unit
• 1 x Air supply filter regulator with pressure switch
• 1 x Air compressor super silent sager
• 6 x 3d printed assembly line set
• 1 x SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• 1 x SIMATIC S7-1200 G2: CB 1241 Communication Board, interface: RS485, with push-in terminal block
• 1 x SENTRON PAC1600, measuring device, 7KT PAC1600, LCD, L-N: 230 V, 63 A, strd rail instr., sing.-ph., Modbus RTU/ASCII, apparent/ active/reactive energy, self-powered, screw terminals
• 1 x Stabilized power supply input: 120/230 V AC, 24 V/10 A
• 1 x SCALANCE XB005 unmanaged Industrial Ethernet Switch for 10/100 Mbit/s
• 1 x AA026.001.04 HMI KTP700 INTERFACE CASE (CPS)
• 1 x IFM RFID system Io-Link (reader & antenna)
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE Programming software TIA Portal – SIEMENS
