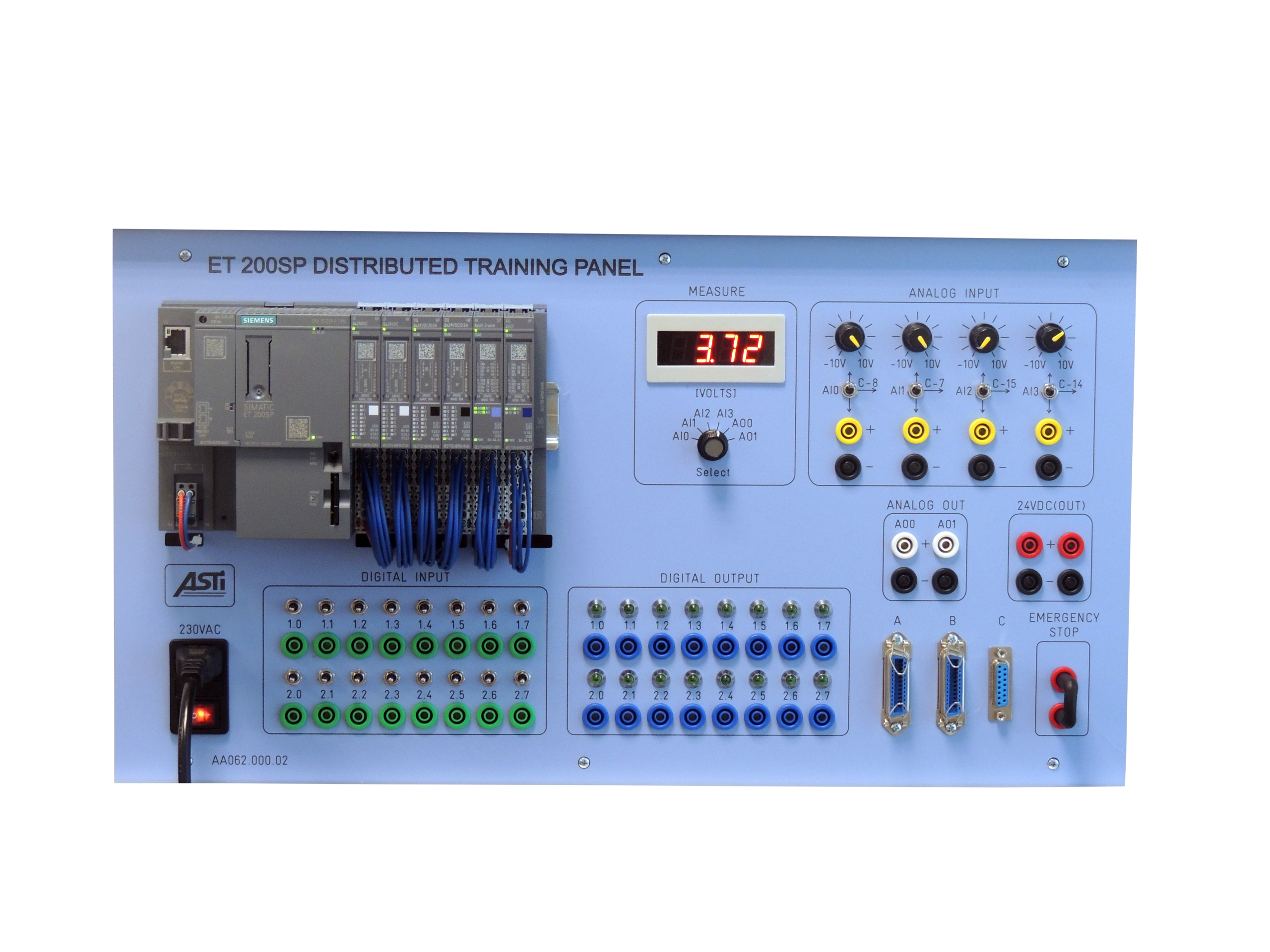

ET200SP (CPU 1512SP-F) DISTRIBUTED TRAINING PANEL

AA062.000.02

  • SAFETY


Includes main parts:

• 1x CPU 1512SP- 1 PN for ET 200SP, Central processing unit with Work memory 300 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 3-port switch, 48 ns bit performance, SIMATIC Memory Card required, BusAdapter required for Port 1 and 2

• 1x SIMATIC S7, Memory Card for S7-1X00 CPU/SINAMICS, 3.3 V Flash, 4 MB

• 1x DI 16x24VDC

• 1x DQ 16x24VDC/0.5A

• 1x Bus adapter 2x RJ45; 4 x BU type A0, push-in, 2 infeed terminal separated (digital/analog,)

• 1x AI 4xU/I 2-/4-wire; 1 x AQ 2xU/I

• 2x BU type A0, 16 push-in, 2 infeed terminals (digital/analog, max. 24 V DC/10A)

• Power Supply 24VDC, 3A

The panel also includes:

• 16 switches (retentive and pulse) for DI simulation and 16x 4mm safety sockets for external DI

• 16x 4mm safety sockets and status LEDs for DO

• 4 potentiometers for simulating the analog channel inputs in the range -10V DC...+10V DC

• 4 switches ON/ON/ON for AI source selection (simulated via potentiometer/ Syslink analog connector/ 4mm safety sockets)

• 4 pairs of 4mm safety sockets for external AI signals; 2 pairs of 4mm safety sockets for AO signals

• 2 pairs of 4mm safety sockets for powering external equipment via 24VDC output

• 2x SYSLINK digital connectors for DI/DO (A, B); 1 x SYSLINK analog (DB15) connector for AI/AO (C)

• 7-segment display for visualizing the AI/AO signals and multiple positon switch for AI/AO selection

• Power supply socket with general switch and LED indicator; 1 pair of 4mm emergency sockets

SIZE (W x H x D): 532 x 297 x 175 mm  NET WEIGHT: 3.75 kg

THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual

RECOMMENDED: Safety connection cables 4 mm,  LICENSE Programming software TIA Portal - SIEMENS
