Description

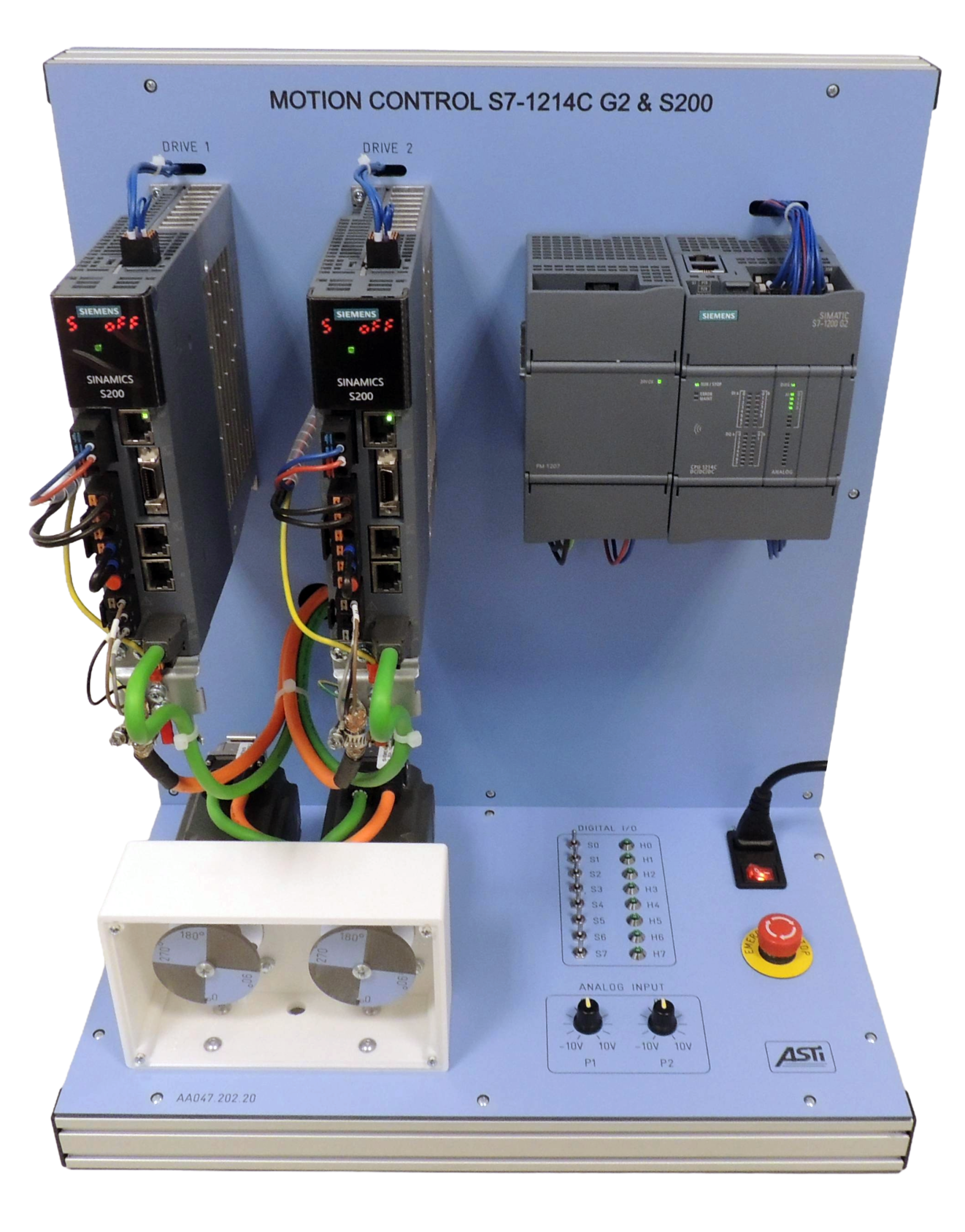

Includes main parts:
• 2 x SINAMICS INVERTER S200 with PROFINET Input voltage: 200-240 V 1/3 AC; -15%/+10%; 3.0/1.8 A 50/60Hz, output voltage: 0-inpu 2.4 A; 0-550Hz; Motor: 0.4 kW
• 2 x SIMOTICS SERVOMOTOR S-1FL2, Supply voltage 200 V 3AC Pn=0.4 kW; Nn=3000rpm M0=1.27Nm; Mn=1.27Nm, shaft height 30 mm With hybrid connector AS21bit with shaft key, Tolerance N Without holding brake
• 2 x S200 Cable Dual cable pre-assembled 4 x 0.75/3 x 2 x 0.25 for motor S-1FL2 SH20/30/40 with S200, Length (m)=3m, Dmax power=7.5 mm, Dmax encoder=7.0 mm w.o. brake
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• SIMATIC S7-1200 G2: SB 1231 analog input, 4 AI; inputs: 4 AI 14 bit ADC (+/-10 V)
• SIMATIC S7-1200 G2: SM 1222 digital output, 16 DO; outputs: 16 DO, 24 V DC 0.5 A, sourcing transistor
• SIMATIC S7-1200 G2: SM 1221 digital input, 16 DI; inputs: 16 DI 24 V DC sink/source
• SIMATIC S7-1200 power module PM 1207 24 V/5 A stabilized power supply input: 120 – 240 V AC/DC output: 24 V DC/5 A with diagnostic interf
The panel also includes:
• 2 potentiometers for simulating the analog channel inputs in the range 0 V DC…+10 V DC
• 16 switches (retentive and pulse) for DI simulation and 16 x 4 mm safety sockets for external DI
• 16 x 4 mm safety sockets and status LEDs for DO
• 1 x ESD button
• 2 x switch for I/O selection
• Power supply socket with general switch and LED indicator
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software TIA Portal
