Description
Description:

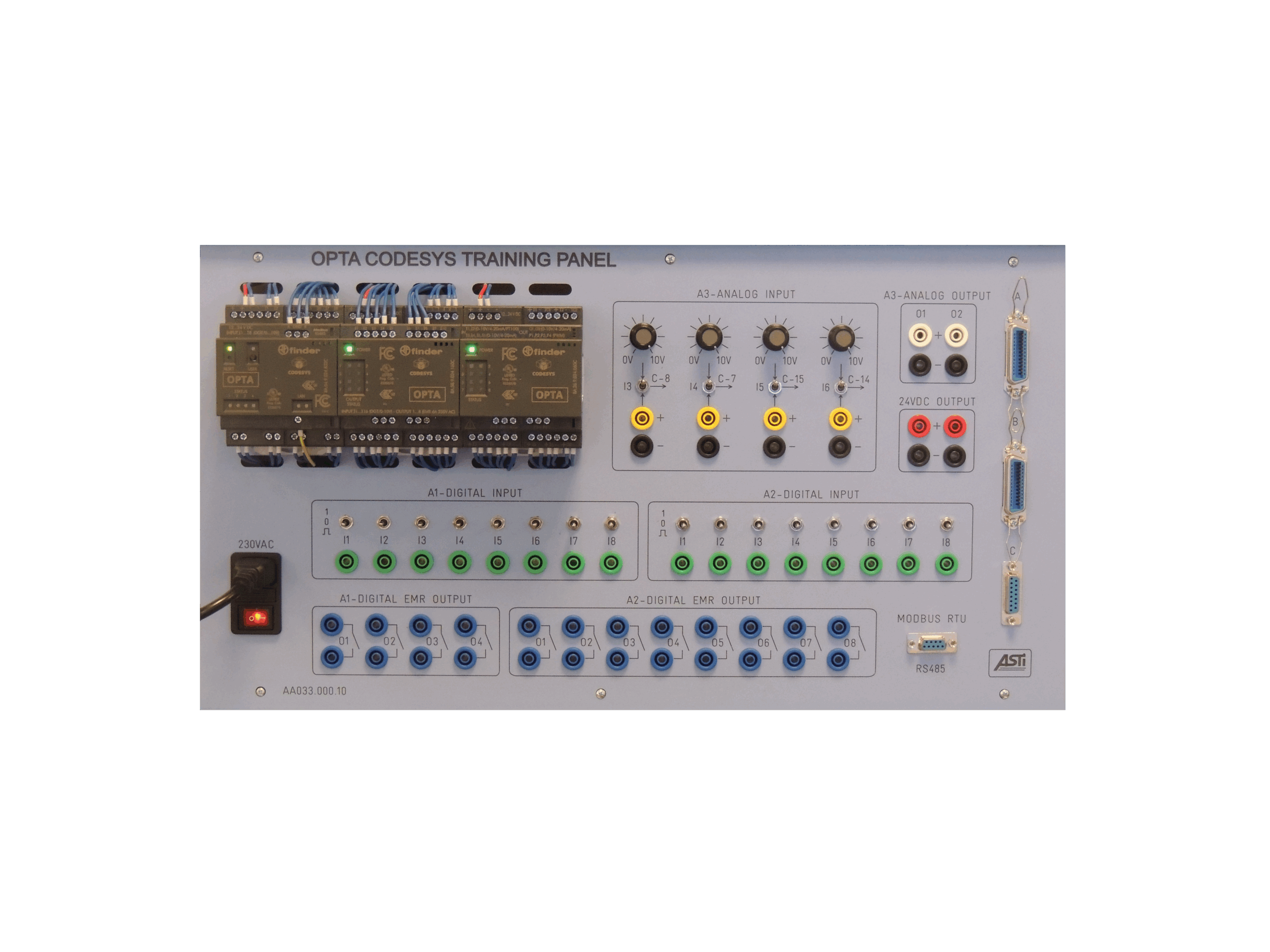

This advanced training panel is designed for industrial automation education, built around Finder OPTA logic relays which are programmed using the industry-standard CODESYS (IEC 61131-3) platform. It provides a powerful and versatile environment for developing complex control and communication skills.
The structure includes (main pieces):
- 16 switches (retentive and pulse) for DI simulation and 16 x 4 mm safety sockets for external DI
- 12 x 4 mm safety sockets for electro-mechanical relay outputs
- 4 potentiometers for simulating the analog channel input in voltage 0V DC…+10V DC
- 4 switches ON/ON/ON for AI source selection (simulated via potentiometer/ Syslink analog connector/4 mm safety sockets)
- 4 pairs of 4 mm safety sockets for external AI signals
- 2 pairs of 4 mm safety sockets for AO signals
- 2 pairs of 4 mm safety sockets for powering external equipment via 24V DC output
- 2 x SYSLINK digital connectors for DI/DO (A, B)
- 1 x SYSLINK analog (DB15) connector for AI/AO (C)
- 1 X SYSLINK connector for RS485 communication
- Power supply socket with general switch and LED indicator
SIZE (W x H x D): 532 x 297 x 170 mm NET WEIGHT: Kg
THE PACKAGE ALSO INCLUDES: Power cable, User manual
RECOMMENDED: Safety connection cables 4 mm
