Description

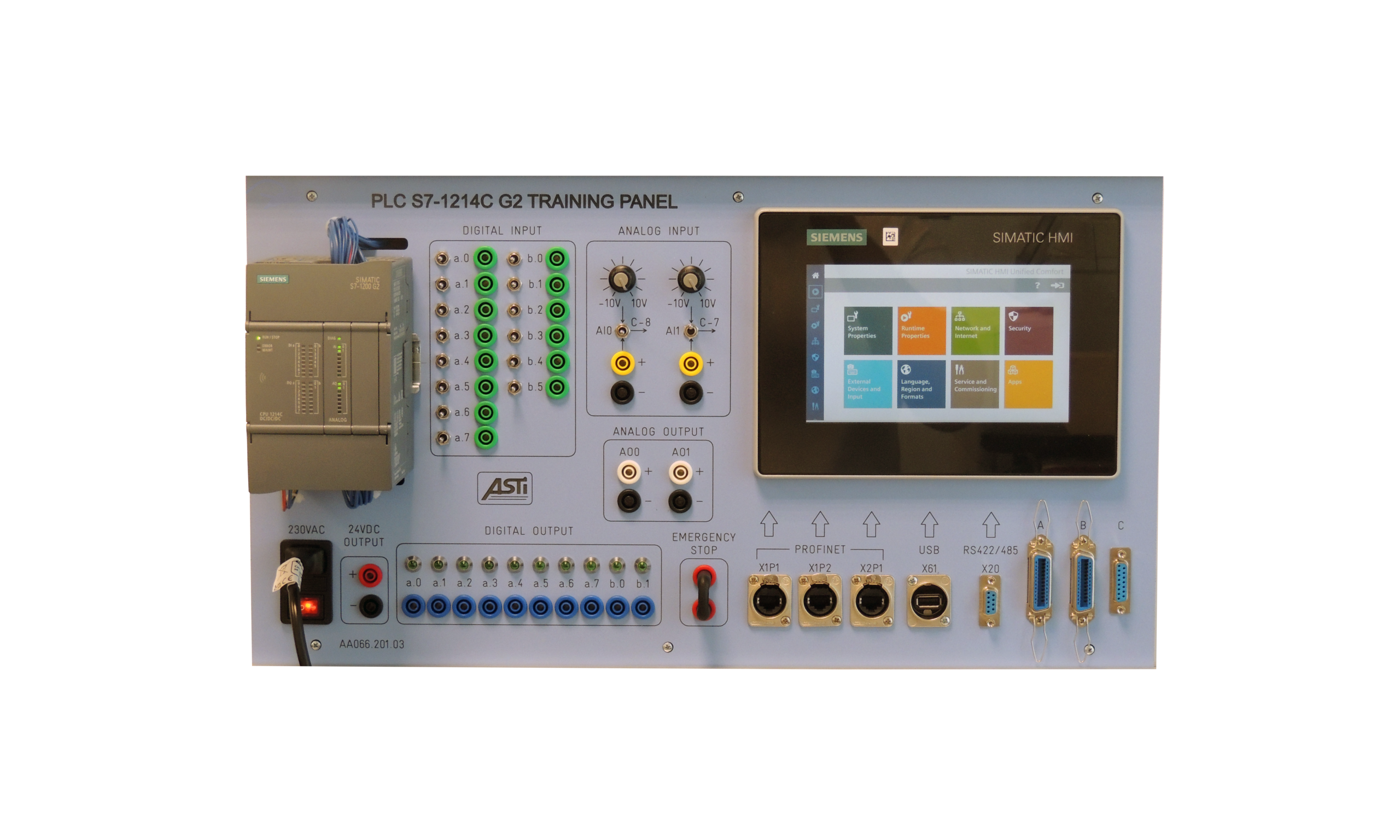

Includes main parts:
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply
• SIMATIC S7-1200 G2: SB 1233 analog I/O, 2 AI/2 AO inputs
• POWER MODULE: 24 V DC, 2.5 A
• SIEMENS SIMATIC HMI MTP700 Unified Comfort Panel, touch operation, 7″ widescreen PN connection
The panel also includes:
• 14 switches (retentive and pulse) for DI simulation and 14 x 4 mm safety sockets for external DI
• 10 x 4 mm safety sockets and status LEDs for DO
• 2 potentiometers for simulating the analog channel inputs in the range 0 V DC…+10 V DC
• 2 switches ON/ON/ON for AI source selection (simulated via potentiometer)
• 2 pairs of 4 mm safety sockets for external AI signals
• 2 pairs of 4 mm safety sockets for AO signals
• 1 pair of 4 mm safety sockets for powering external equipment via 24 V DC output
• 2 x SYSLINK digital connectors for DI/DO (A, B)
• 1 x SYSLINK analog (DB15) connector for AI/AO (C)
• Power supply socket with general switch and LED indicator
• 1 pair of 4 mm emergency sockets
• Ethernet socket
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software TIA Portal
