Description
Includes main parts:
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply
• SIMATIC S7-1200 G2: SB 1233 analog I/O, 2 AI/2 AO inputs
• CSM 1277 G2: compact switch module for SIMATIC S7-1200 G2 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbps
• unmanaged switch, 4 RJ45 ports, external 24 V DC power supply LED diagnostics
• SIMATIC S7-1200 G2: power module PM 1207 24 V/5 A stabilized power supply input

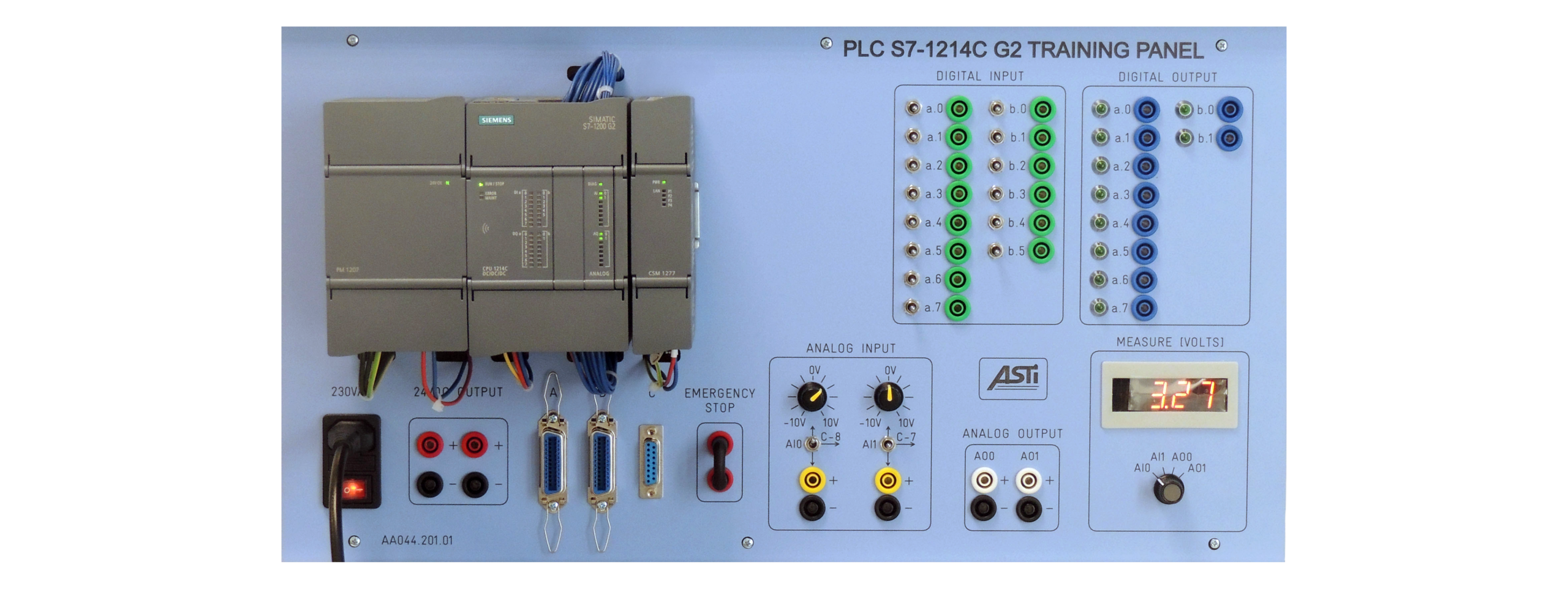

The panel also includes:
• 14 switches (retentive and pulse) for DI simulation and 16 x 4 mm safety sockets for external DI
• 10 x 4 mm safety sockets and status LEDs for DO
• 2 potentiometers for simulating the analog channel input in voltage 0 V DC…+10 V DC
• 2 switches ON/ON/ON for AI source selection (simulated via potentiometer/ Syslink analog connector/ 4 mm safety sockets)
• 2 pairs of 4 mm safety sockets for external AI signals
• 2 pairs of 4 mm safety sockets for AO signals
• 1 pair of 4 mm safety sockets for powering external equipment via 24 V DC output
• 2 x SYSLINK digital connectors for DI/DO (A, B)
• 1 x SYSLINK analog (DB15) connectors for AI/AO (C)
• 7-segment display for visualizing the AI/AO signals and multi-position switch for AI/AO selection
• Power supply socket with general switch and LED indicator
• 1 pair of 4 mm emergency sockets
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE Programming software TIA Portal – SIEMENS
