Description
Includes main parts:
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• SIMATIC S7-1200 G2: SM 1233 analog I/O, 4 AI/4 AO; inputs: 4 AI 14 bit ADC (+/-10 V, +/-5 V, +/-2.5 V or 0-20 mA/4-20 mA); outputs: 4x AQ 14 bit DAC (+/-10 V)
• SIMATIC S7-1200 G2: SB 1231 analog input, 4 AI; inputs: 4 AI 14 bit ADC (+/-10 V, +/-5 V, +/-2.5 V or 0-20 mA/4-20 mA)
• CSM 1277 G2 compact switch module for SIMATIC S7-1200 G2 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbps; unmanaged switch, 4 RJ45 ports, external 24 V DC power supply LED diagnostics,
• POWER MODULE: 120/230 V AC, 24 V DC, 2.5 A

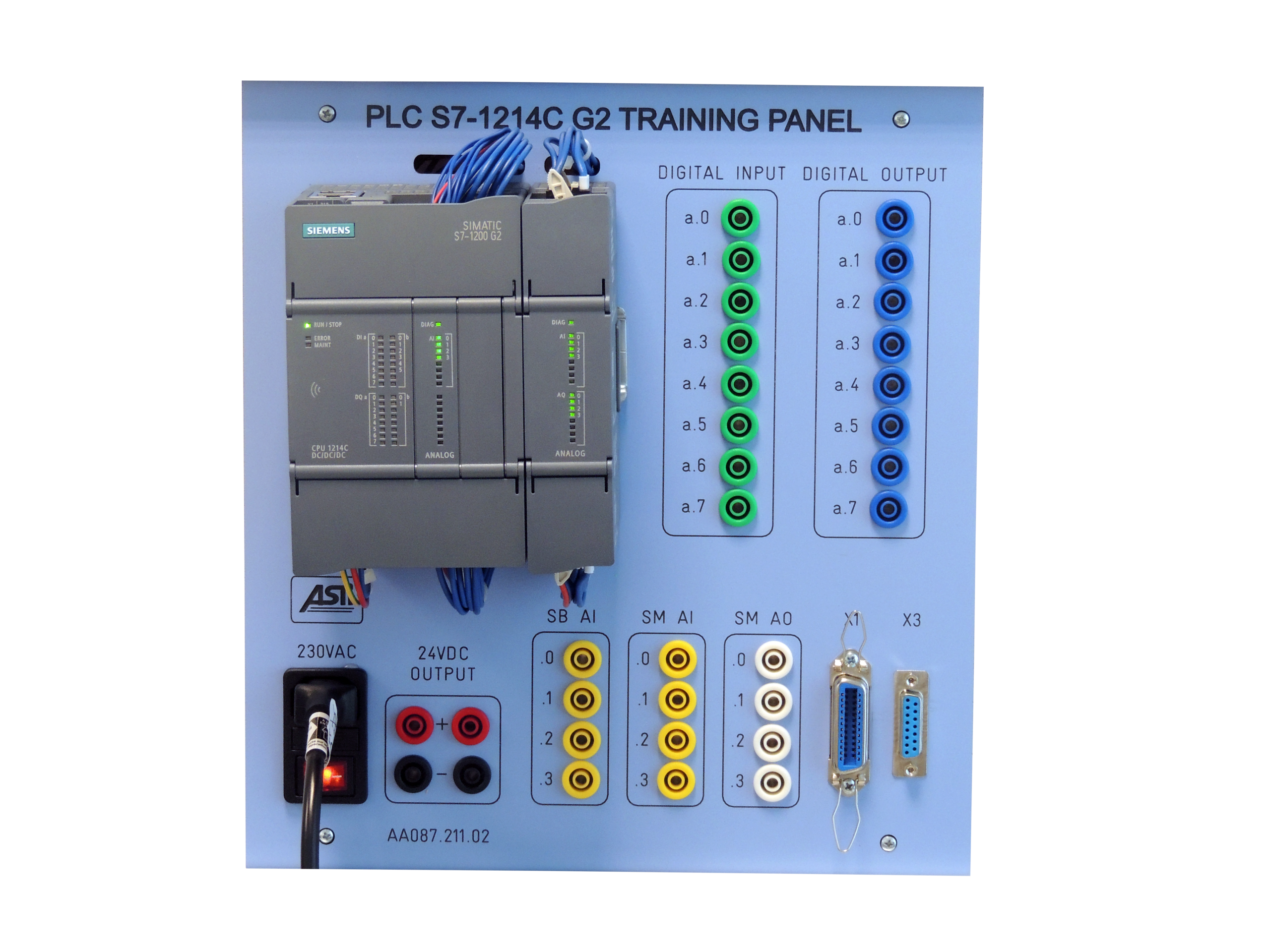

The panel also includes:
• 8 x 4 mm safety sockets for external DI
• 8 x 4 mm safety sockets for DO
• 7 x 4 mm safety sockets for external AI signals
• 3 x 4 mm safety sockets for AO signals
• 2 pairs 4 mm safety sockets for powering external equipment via 24 V DC output
• 1 x SYSLINK digital connectors for DI/DO (A)
• 1 x SYSLINK analog (DB15) connectors for AI/AO (C)
• Power supply socket with general switch and LED indicator
SIZE (W x H x D): 266 x 297 x 170 mm NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software TIA Portal
