Description

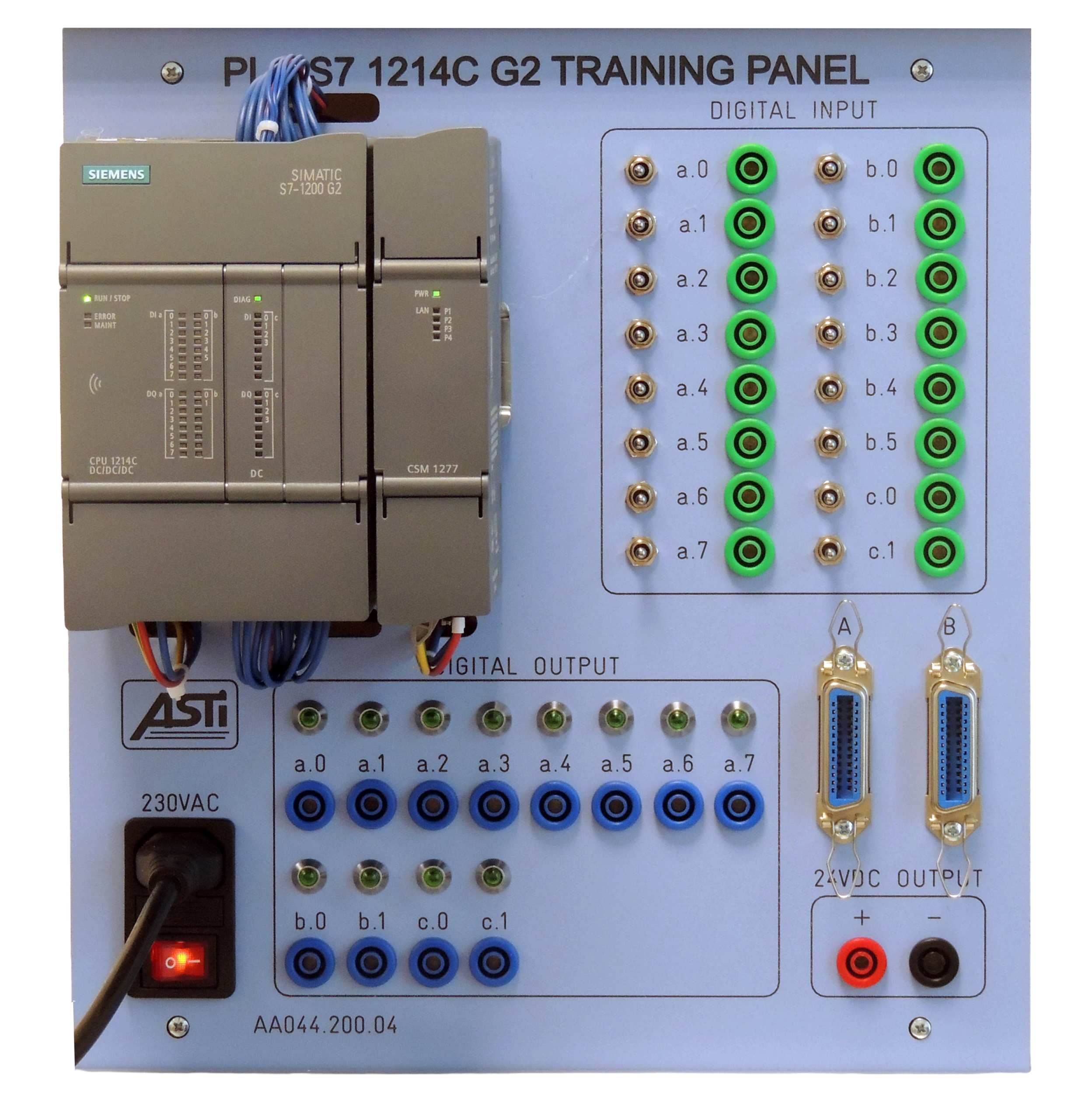

Includes main parts:
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• SIMATIC S7-1200 G2: SB 1223 digital I/O, 4 DI/4 DO 100 kHz; inputs: 4 DI 24 V DC sink/source, 100 kHz; outputs: 4 x DQ 24 V DC 0.1 A sinking/sourcing transistor, 100 kHz
• CSM 1277 G2: compact switch module for SIMATIC S7-1200 G2 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbps; unmanaged switch, 4 RJ45 ports, external 24 V DC power supply LED diagnostics
The panel also includes:
• 16 switches (retentive and pulse) for DI simulation and 16 x 4 mm safety sockets for external DI
• 12 x 4 mm safety sockets for DO
• 1 pair of 4 mm safety sockets for powering external equipment via 24 V DC output
• 2 x SYSLINK digital connectors for DI/DO (A, B)
• Power supply socket with general switch and LED indicator
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software TIA Portal
