Description

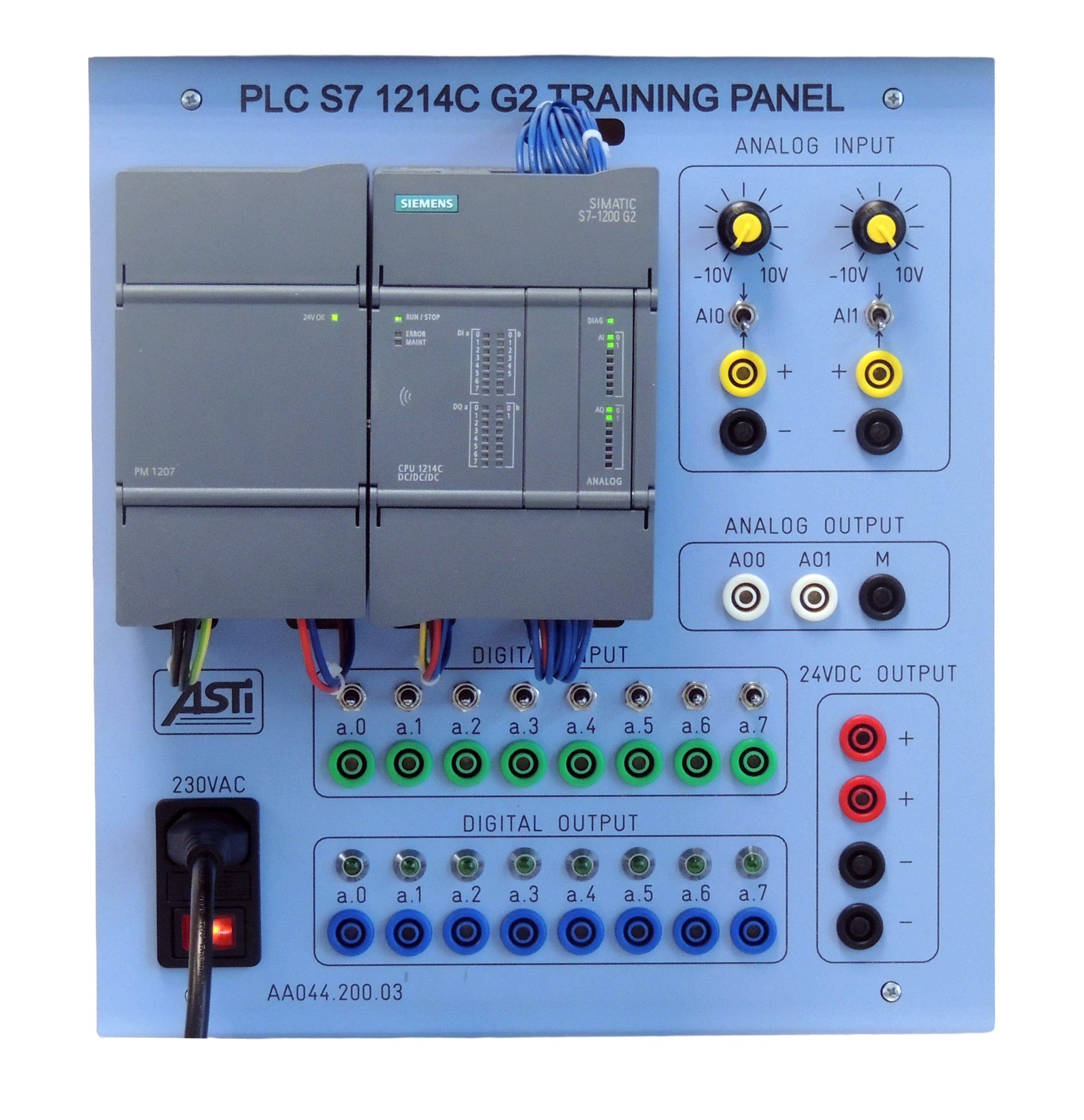

Includes main parts:
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• SIMATIC S7-1200 G2: SB 1233 analog I/O, 2 AI/2 AO inputs: 2 AI 14 bit ADC (+/-10 V, +/-5 V, +/-2.5 V or 0-20 mA/4-20 mA) outputs: 2 x AQ 14 bit (+/-10 V, 0-20 mA or 4-20 mA)
• SIMATIC S7-1200 G2: power module PM 1207 24 V/5 A stabilized power supply input: 120 – 240 V AC/DC output: 24 V DC/5 A with diagnostic interface
The panel also includes:
• 8 switches (retentive and pulse) for DI simulation and 8 x 4 mm safety sockets for external DI
• 8 x 4 mm safety sockets and status LEDs for DO
• 2 potentiometers for simulating the analog channel input in voltage 0 V DC…+10 V DC
• 2 switches ON/ON for AI source selection (simulated via potentiometer/ 4 mm safety sockets)
• 2 pairs of 4 mm safety sockets for external AI signals
• 2 pairs of 4 mm safety sockets for AO signals
• 1 pair of 4 mm safety sockets for powering external equipment via 24 V DC output
• Power supply socket with general switch and LED indicator
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software TIA Portal
