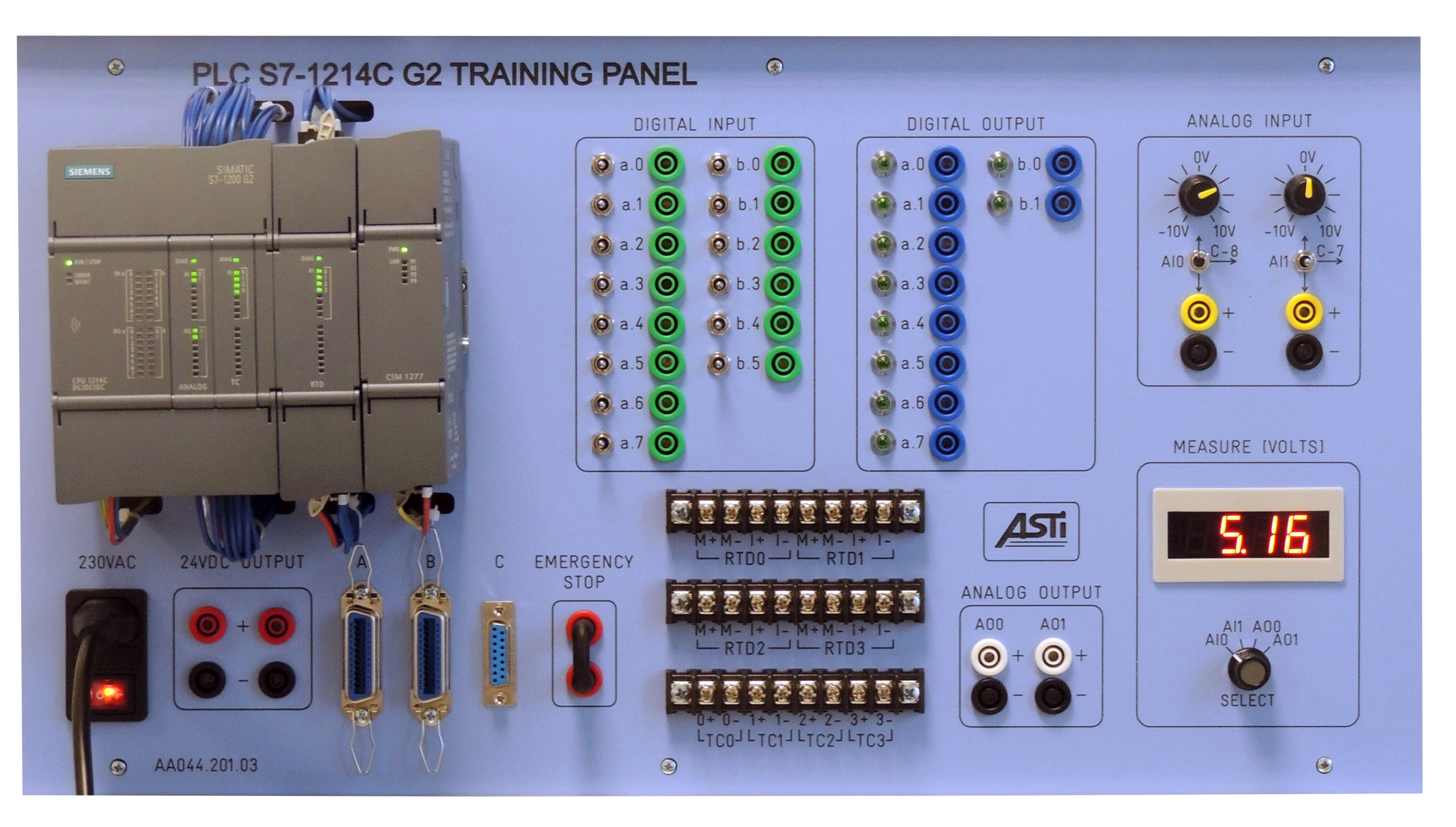

Description
Includes main parts:
• SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• SIMATIC S7-1200 G2, SB 1231 TC, AI 4x TC type J or K
• SIMATIC S7-1200 G2, SM 1231 RTD, AI 4x RTD module, Pt100 and Pt1000
• SIMATIC S7-1200 G2: SB 1233 analog I/O, 2 AI/2 AO inputs: 2 AI 14 bit ADC (+/-10 V, +/-5 V, +/-2.5 V or 0-20 mA/4-20 mA) outputs: 2 x AQ 14 bit DAC (+/-10 V, 0-20 mA or 4-20 mA)
• CSM 1277 G2 compact switch module for SIMATIC S7-1200 G2 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbps; unmanaged switch, 4 RJ45 ports, external 24 V DC power supply LED diagnostics, S7-1200 module incl. Equipment Manual for download available
• POWER MODULE: 120/230 V AC, 24 V DC, 2.5 A
The panel also includes:
• 8 switches (retentive and pulse) for DI simulation and 8 x 4 mm safety sockets for external DI
• 8 x 4 mm safety sockets and status LEDs for DO
• 2 potentiometers for simulating the analog channel input in voltage 0 V DC…+10 V DC
• 2 switches ON/ON/ON for AI source selection (simulated via potentiometer/ Syslink analog connector/ 4 mm safety sockets)
• 2 pairs of 4 mm safety sockets for external AI signals; 2 pairs of 4 mm safety sockets for AO signals
• 2 pairs of 4 mm safety sockets for powering external equipment via 24 V DC output
• 1 x SYSLINK digital connector for DI/DO (A); 1 x SYSLINK analog (DB15) connector for AI/AO (C)
• 7-segment display for visualizing the AI/AO signals and multi-position switch for AI/AO selection
• Power supply socket with general switch and LED indicator
• 1 pair of 4 mm emergency sockets
• 4 pairs of THERMORESISTANCES screw connectors
• 4 pairs of THERMOCOUPLES screw connectors
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software TIA Portal
