Description

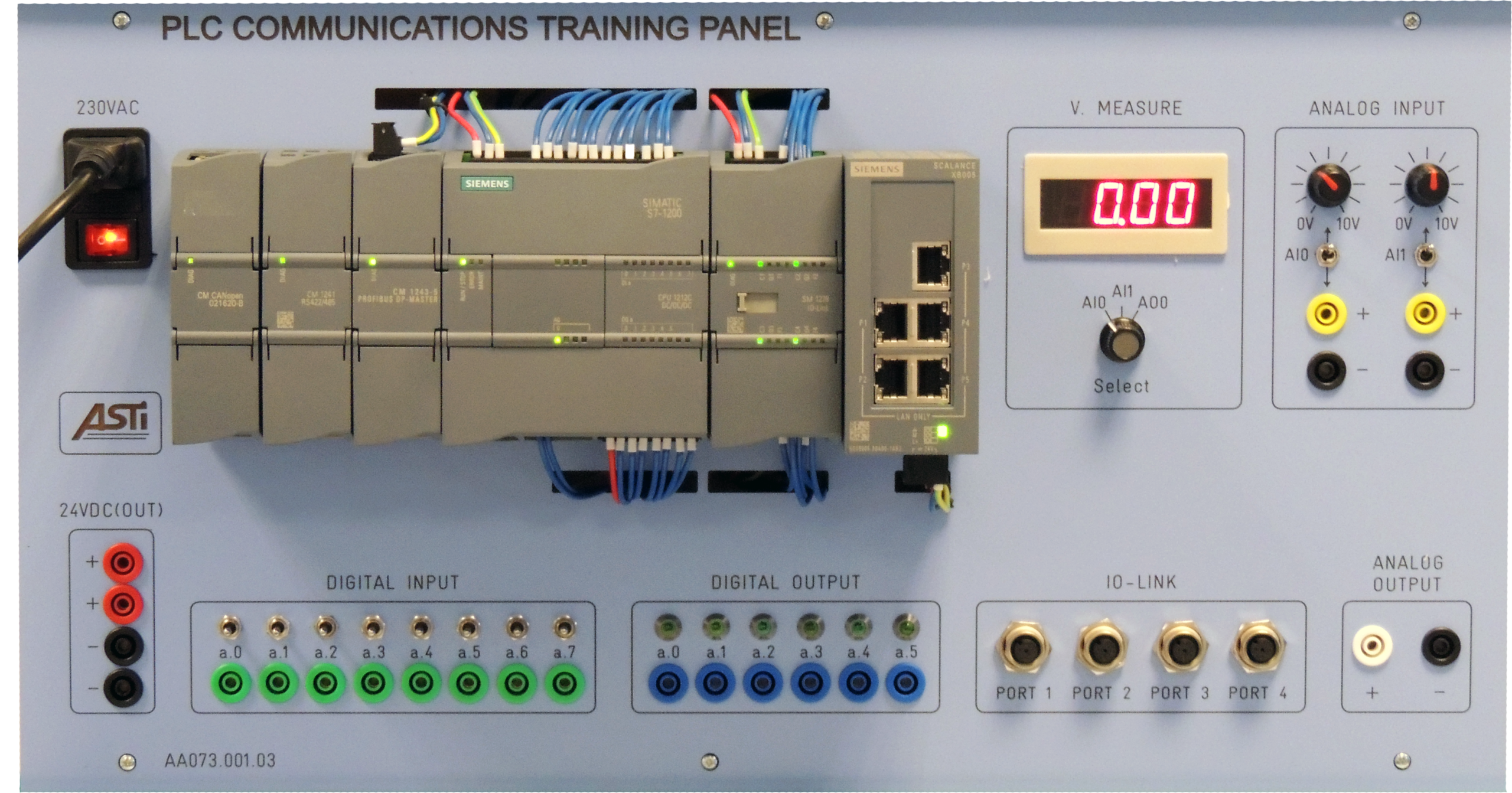

Includes main parts:
• SIEMENS SIMATIC S7-1200 PLC (CPU 1212C PN): 10DI, 24V DC/6DO, 24V DC, 0.5 A/2AI, 0-10 V DC
• SIEMENS SIMATIC S7-1200 1AO MODULE
• SIEMENS SIMATIC S7-1200 COMMUNICATION MODULE RS422/485
• SIEMENS SIMATIC S7-1200 COMMUNICATION MODULE PROFIBUS MASTER
• SIEMENS SIMATIC S7-1200 COMMUNICATION MODULE CanOpen
• SIEMENS SIMATIC S7-1200 COMMUNICATION MODULE IO-Link MASTER
• SIEMENS SCALANCE XB005
• POWER SUPPLY 24V DC, 3 A
The panel also includes:
• 8 switches (retentive and pulse) for DI simulation and 8x 4 mm safety sockets for external DI
• 6x 4mm safety sockets and status LEDs for DO
• 2 potentiometers for simulating the analog channel input in voltage 0 V DC…+10 V DC
• 2 switches ON/ON for AI source selection (simulated via potentiometer /4 mm safety sockets)
• 2 pairs of 4 mm safety sockets for external AI signals
• 1 pair of 4 mm safety sockets for AO signals
• 2 pairs of 4 mm safety sockets for powering external equipment via 24 V DC output
• 4x M12 IO-Link connectors
• 7-segment display for visualizing the AI/AO signals and multiple positon switch for AI/AO selection
• Power supply socket with general switch and LED indicator
SIZE (W x H x D): 532 x 297 x 165 mm NET WEIGHT: 3.5 Kg
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE Programming software TIA Portal – SIEMENS
