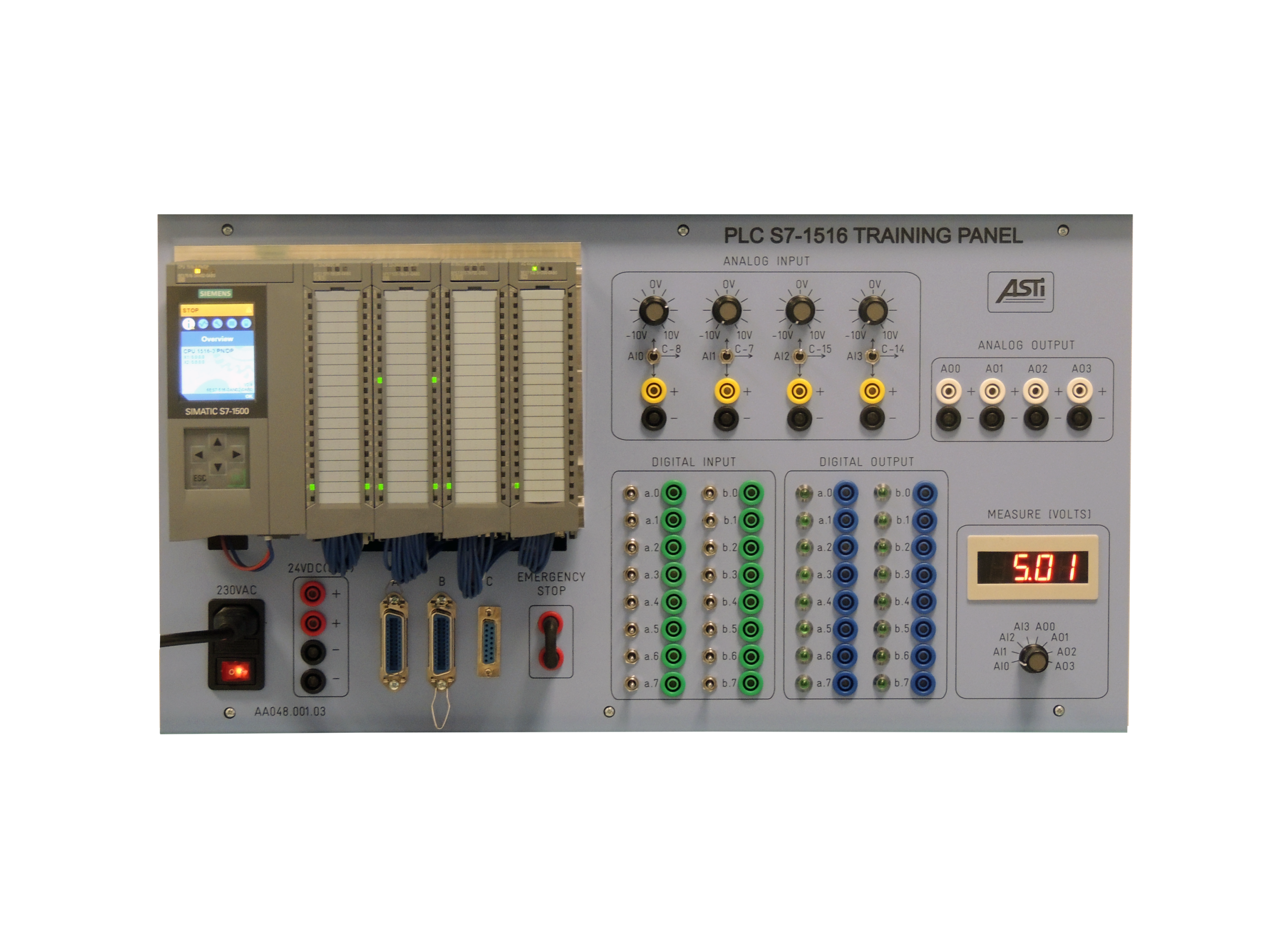

Description
Includes main parts:
• SIEMENS SIMATIC S7-1500 PLC (CPU 1516-3PN/DP)
• SIEMENS SIMATIC S7-1500 DI MODULE: 32DI, 24V DC
• SIEMENS SIMATIC S7-1500 DO MODULE: 32DO, 24V DC, 0.5 A
• SIEMENS SIMATIC S7-1500 AI MODULE: 8AI U/I/RTD/TC ST, 16 bit resolution
• SIEMENS SIMATIC S7-1500 AO MODULE: 4AO 4xU/I ST, 16 bit resolution
• SIEMENS SIMATIC S7 MEMORY CARD: 24 MB
• SIEMENS SIMATIC S7-1500 FRONT CONNECTOR SCREW-TYPE
• POWER MODULE: 120/230V AC, 24V DC, 3 A
The panel also includes:
• 16 switches (retentive and pulse) for DI simulation and 16 x 4mm safety sockets for external DI
• 16 x 4mm safety sockets and status LEDs for DO
• 4 potentiometers for simulating the analog channel inputs in the range -10V DC…+10V DC
• 4 switches ON/ON/ON for AI source selection (simulated via potentiometer/ Syslink analog connector/ 4mm safety sockets)
• 4 pairs of 4mm safety sockets for external AI signals
• 4 pairs of 4mm safety sockets for AO signals
• 2 pairs of 4mm safety sockets for powering external equipment via 24VDC output
• 2 x SYSLINK digital connectors for DI/DO (A, B)
• 1 x SYSLINK analog (DB15) connectors for AI/AO (C)
• 7-segment display for visualizing the AI/AO signals and multiple positon switch for AI/AO selection
• Power supply socket with general switch and LED indicator
• 1 pair of 4mm emergency sockets
SIZE (W x H x D): 532 x 297 x 225 mm Net Weight: 5.90 Kg
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE Programming software Siemens TIA Portal
