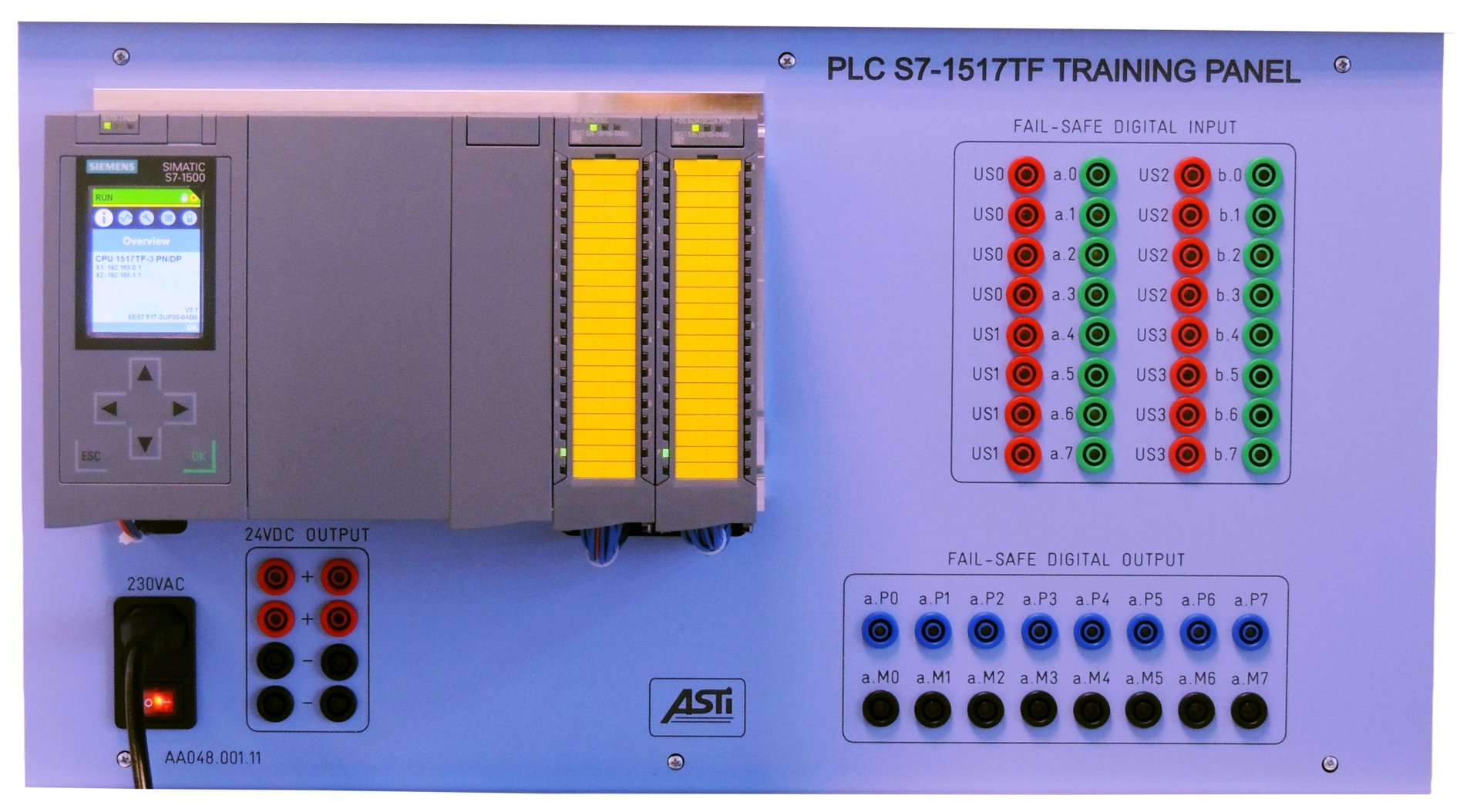

Description
Includes main parts:
• SIEMENS SIMATIC S7-1500 PLC (CPU 1517TF-3PN)
• SM 526 F-DI 16x 24 V DC PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL 3
• SM 526 F-DQ 8x 24 V DC 2A PPM PROFIsafe; 35 mm width; up to PL E
• SIEMENS SIMATIC S7 MEMORY CARD: 256 MB
• POWER MODULE: 24 V DC/ 5 A
The panel also includes:
• 16 switches (retentive and pulse) for DI simulation and 16 x 4mm safety sockets for external DI
• 16 x 4mm safety sockets and status LEDs for DO
• 2 pairs of 4mm safety sockets for powering external equipment via 24VDC output
• 2 x SYSLINK digital connectors for DI/DO (A, B)
• Power supply socket with general switch and LED indicator
• 1 pair of 4mm emergency sockets
The package includes: Power cable, Ethernet cable, User manual
Recommended: Safety connection cables 4 mm, License programming software TIA Portal
