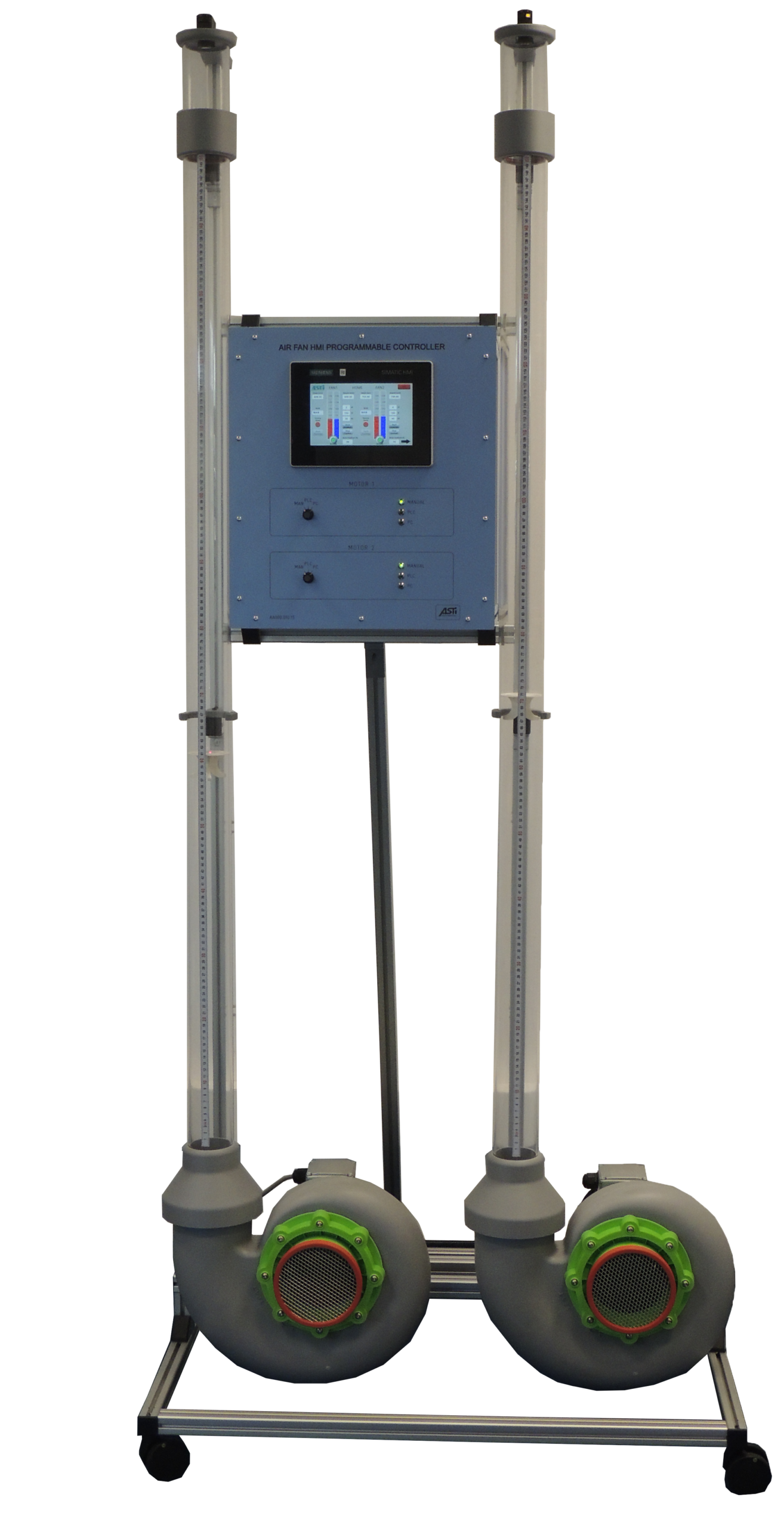

Description
Includes main parts:
• 2 x AirFan, Maximum Air Flow: 900 m3/h, Maximum pressure: 420 Pa
• 2 x Asynchronous motor, 0.37 kW, 2800 rpm, 230 V AC
• 2 x IFM IO-LINK Laser Sensor for measuring distance (0.05m to 2 m)
• 4 x Castor D65 Swivel Brake
• 1 x 3D Printed Mobile Part
• Plexiglass pipe with Graduated Ruler
• Aluminium Frame Profile 6 30 x 30
• Electric box (main pieces) with:
• 1 x SIMATIC S7-1200 G2: compact CPU 1214C DC/DC/DC; power supply: DC 20.4-28.8 V DC; onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC
• 1 x SIMATIC S7-1200 G2: SB 1233 analog I/O, 2 AI/2 AO inputs: 2 AI 14 bit ADC (+/-10 V)
• 1 x IO-Link master with PROFINET interface
• 2 x SINAMICS V20 200-240 V 1-phase-AC Rated power 0.37 kW
• Fieldbus: USS/Modbus RTU with built-in BOP
• 1 x HMI MTP700, Unified Comfort Panel, touch operation, 7″ widescreen TFT display,
• Power Supply 24 V/5 A
• 2 x Rotary Switch for “CONTROL MODE”: MAN / PLC/ PC
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: AA600.103.02 – DataManagement (” PC 23.8″ i5) with SIEMENS SOFTWARE TIA PORTAL
