Description

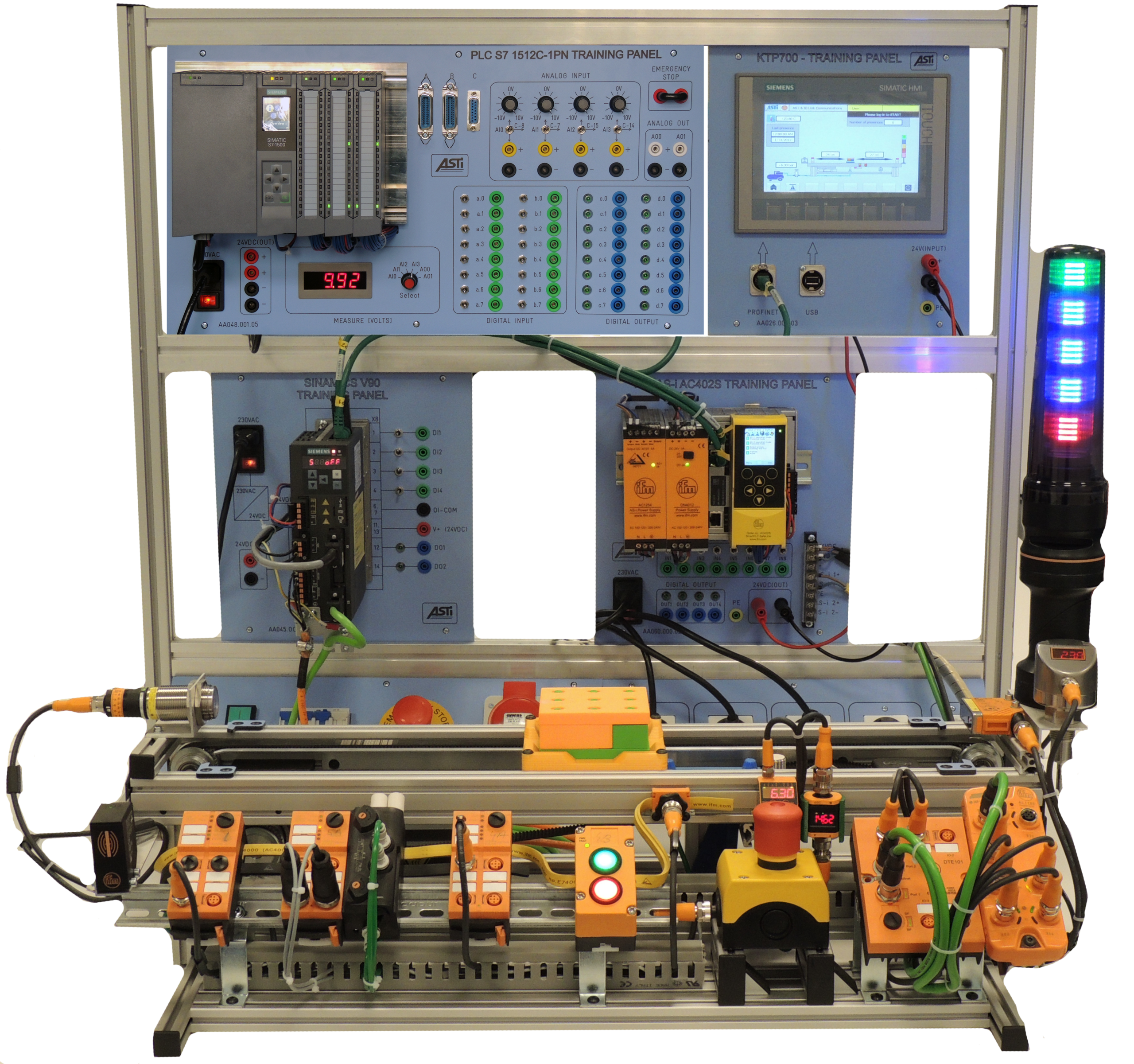

Includes main parts:
• AA200.000.05 TABLE_TOP STAND with Supply Panel (850 x 760) mm
• AA048.001.05 PLC S7-1512C TRAINING PANEL (CPU 1512C)
• AA026.000.03 KTP700 HMI TRAINING PANEL
• AA094.101.20 Conveyor Toothed Servomotor; AA047.000.01 Sinamics S200 Training Panel
• AA059.000.09 AIR Compressor SUPERSILENT
• AA060.000.02 IFM AS-i AC402S TRAINING PANEL
• IFM SENSORS SET:
• Inductive sensor with IO-Link, Sensing range [mm]-5 NO
• 5-segment light tower IO-Link programmable
• IO-Link memory plug
• Evaluation system and display for AI 4-20 MA
• RFID evaluation unit with IO-Link, M12 connectors
• RFID tag 125 kHz – Q5 Ø 30 / L = 2.2
• RFID read/write antenna with AS-Interface
• RFID tag 125 KHz – Hitag S Ø 30 / L = 2, 5 mm
• AS-Interface flat cable connnector M12
• Illuminated E-STOP with integrated AS-i:
• AS-Interface illuminated pushbutton module with 2 buttons
• AS-Interface Airbox 4 DI and 2 Pneumatic Outputs
• Pressure sensor for pneumatics IO-Link, Measuring range-> -1…10 bar
• Temperature transmitter with display IO-Link, Measuring range->-50…150 °C
• RFID read/write antenna IO-Link, Distance to the ID tag [mm] ≤ 55
• IO-Link master with PROFINET interface with 8 configurable I/O’s
• AS-Interface ClassicLine Module with 2 IO-LINK PORTS
• Photoelectric distance sensor with AS-Interface, Measuring range [m]->0.03…2
• AS-Interface ClassicLine Module with M12 connectors for sensors and actuators for 2 DI and 2 DO
SIZE (W x H x D): NET WEIGHT:
THE PACKAGE ALSO INCLUDES: Power cable, Ethernet cable, User manual
RECOMMENDED: Safety connection cables 4 mm, LICENSE programming software
