Description

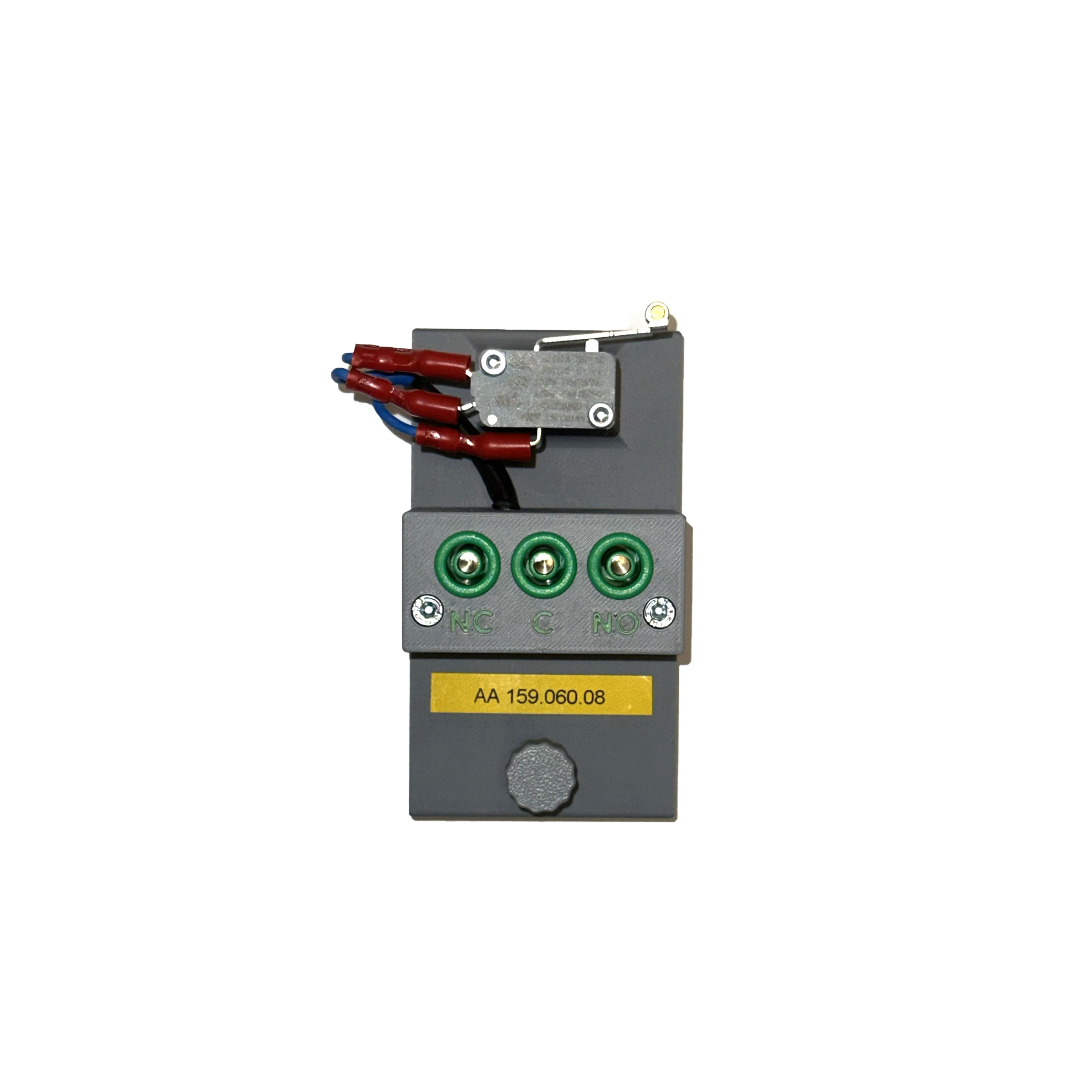

Includes main parts:
- Circuit: SPDT (Single Pole Double Throw)
- Switch Function: On-Mom (Momentary, ON – (OFF), OFF – (ON))
- Current Rating: 16 A (AC)
- Voltage Rating (AC): 250 VAC
- Contact Material: Silver
- Electrical Life: 50,000 cycles
- Actuator Type: Long Roller Lever (positioned far from pin plunger)
- Operating Force: 2.94 N (300 gf)
- Release Force: 0.294 N (30 gf)
- Pretravel: 3.2 mm
- Differential Travel: 1.2 mm
- Overtravel: 1.3 mm
- Operating Position: 20.6 mm
- Mechanical Life: 5,000,000 cycles
- Termination Style: Quick Connect, 6.35 mm x 0.80 mm
- Operating Temperature: -25°C to +125°C
