Description

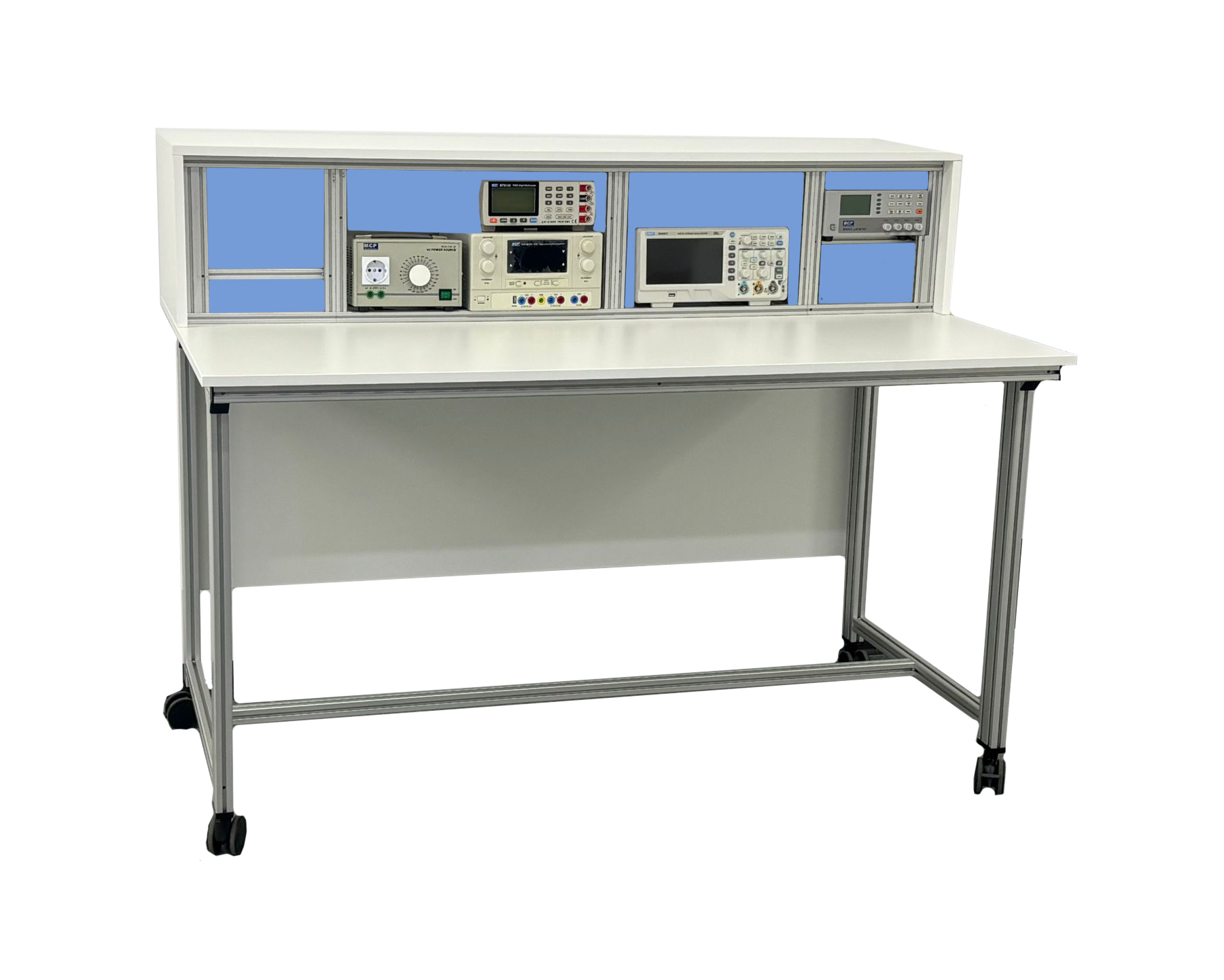

TRAINING WORKBENCH WITH ELECTRONIC INSTRUMENTS is consisting of instrument panel and working table is suitable for students to learn and perform testing of components. Instruments is internally electrically connect and is fitted/on Workbench in the panel such that only front panel and necessary interfaces are easily accessible to use
Miniature Circuit Breaker (MCB & Power Indicator) is provided with AC supply for safety purpose. An electronics training workbench typically consists of power sources, measuring instruments, and basic electronic components. These important parts make it possible to do experiments and learn practical skills in electronics. Electronics workbenches are mainly designed to provide a hands-on experience in understanding electrical concepts.
Electronics workbenches should be made from high-quality, durable materials.
The WorkBench has ergonomically designed instrument panel in vertical position and with sufficient space for working. Wheel (with locking mechanism) is provided at legs of workstation so that it can be easily moved.
Main instruments:
- DC power supply, Output voltage: 0~30V × 2, 5V FIXED, Output current: 0~3A × 2, Max. 1A FIXED ,Output mode: independent, series, parallel ( WxH x D): 250x135x300mm
- Digital multimeter: DC voltage: 80mV, 800mV, 8V, 80V, 800V, 1000V, AC voltage: 80mV, 800mV, 8V, 80V, 750V, DC current: 80mA, 800mA, 8A, 20°, AC current: 80mA, 800mA, 8A, 20°, Resistance: 800Ω, 8kΩ, 80kΩ, 800kΩ, 8MΩ, 80MΩ, Capacitance: 1nF, 10nF, 100nF, 1μF, 10μF, 100μF Frequency: 999099Hz~1000.0MHz (WxHxD) 260mm× 82mm× 220mm
- Digital Storage Oscilloscope with 2 Analog Channels Digital Storage , bandwidth: 70MHz / Sampling rate: 500MS/s, 7 inches TFT LCD , high res display 800 x 480 ,built in FFT and digital filter, vertical sensitivity: 1mV/div~20V/div, horizontal range: 2nsdiv~50s/div, trigger mode: Auto,Normal, Single, Math: + ,- , x , /, FFT, (W x H x D)= 306mm ×138mm ×124mm
- LCR meter: L: 0.01~9999H // C: 0.5pF~200mF; R: 0.1mΩ~19.99MΩ //Q: 0.01~999 ;D: 0.01%~999%; Test frequency: 100Hz, 1kHz, 7.8kHz; (WxHxD) 215×88×232mm
- AC Power Supply: Input voltage 220/(230) VAC, Output voltage 0 – 2250 VAC , Output separate, isolative safety, Output voltage continuosly adjustable; High eficiency and convenient 1000 VA, 4.5 A ; (WxHxD) 200 x 120 x 150 mm
